449D597G05
449D597G05
IMAGES ARE FOR REFERENCE ONLY.
IMAGES ARE FOR REFERENCE ONLY.
Select Product Condition:
What's the difference?View Specifications
449D597G05 Specifications
View Full SpecificationsView Specifications

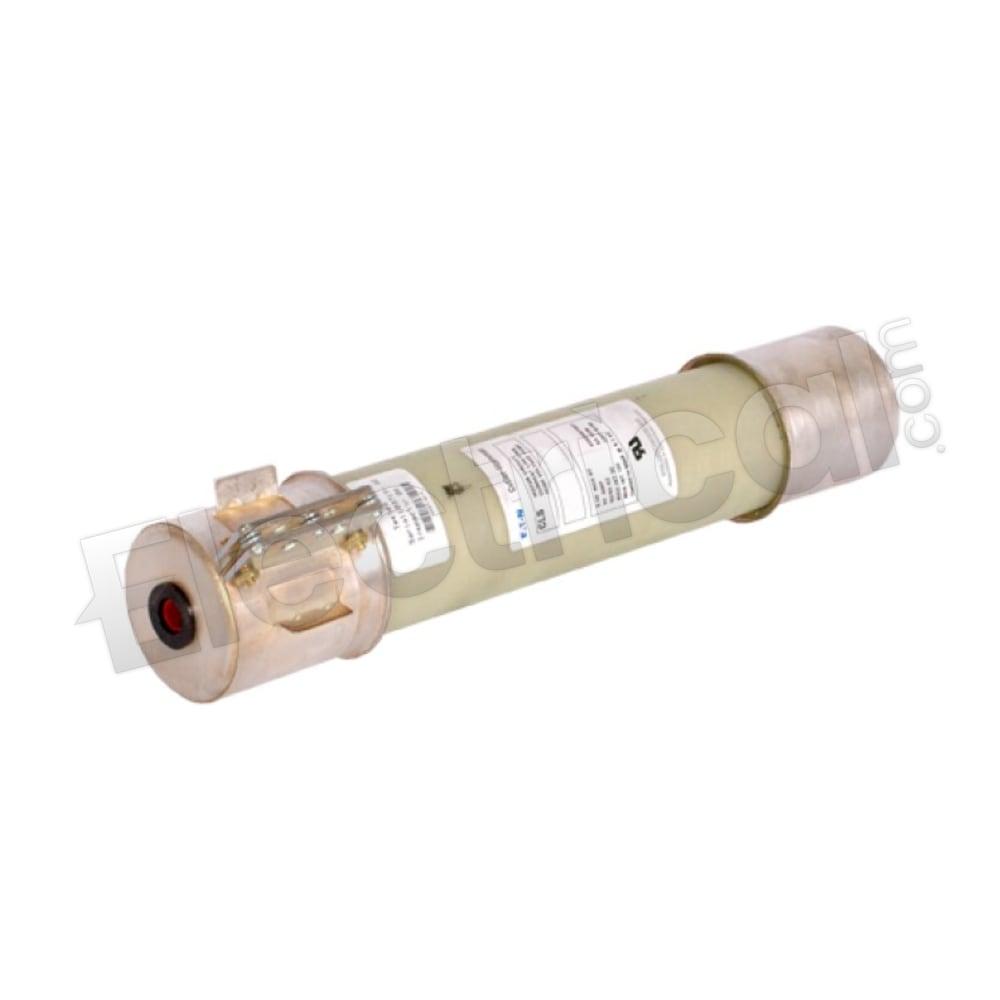

449D597G05, Eaton, CLS, class R, current limiting medium voltage, 5080V Maximum, 150A, 1 barrel, 3" diameter, [email protected] AIC rating, medium voltage for medium voltage motor starter protection; superseded by 5ACLS-5R
| Manufacturer | Eaton | Subcategory | Medium Voltage |
| Family | CLS | Amperage Rating | 150 |
| Class Rating | R | Connection | Ferrule |
| Manufacturer | Eaton | ||
| Subcategory | Medium Voltage | ||
| Family | CLS | ||
| Amperage Rating | 150 | ||
| Class Rating | R | ||
| Connection | Ferrule |
Electrical.com is NOT an authorized distributor for Square D and therefore the manufacturer’s warranty does not apply. This product does include an Electrical.com 2 year warranty.
449D597G05 Specifications:
Part Number449D597G05
Manufacturers
Sub-CategoryMedium Voltage
FamilyCLS
TypeACLS
Weight10 lbs
Amperage Rating150
Class RatingR
ConnectionFerrule
Voltage5080
Barrels1
Diameter3
AIC Rating[email protected]
