9570D02G02
9570D02G02
IMAGES ARE FOR REFERENCE ONLY.
IMAGES ARE FOR REFERENCE ONLY.
Select Product Condition:
What's the difference?View Specifications
9570D02G02 Specifications
View Full SpecificationsView Specifications

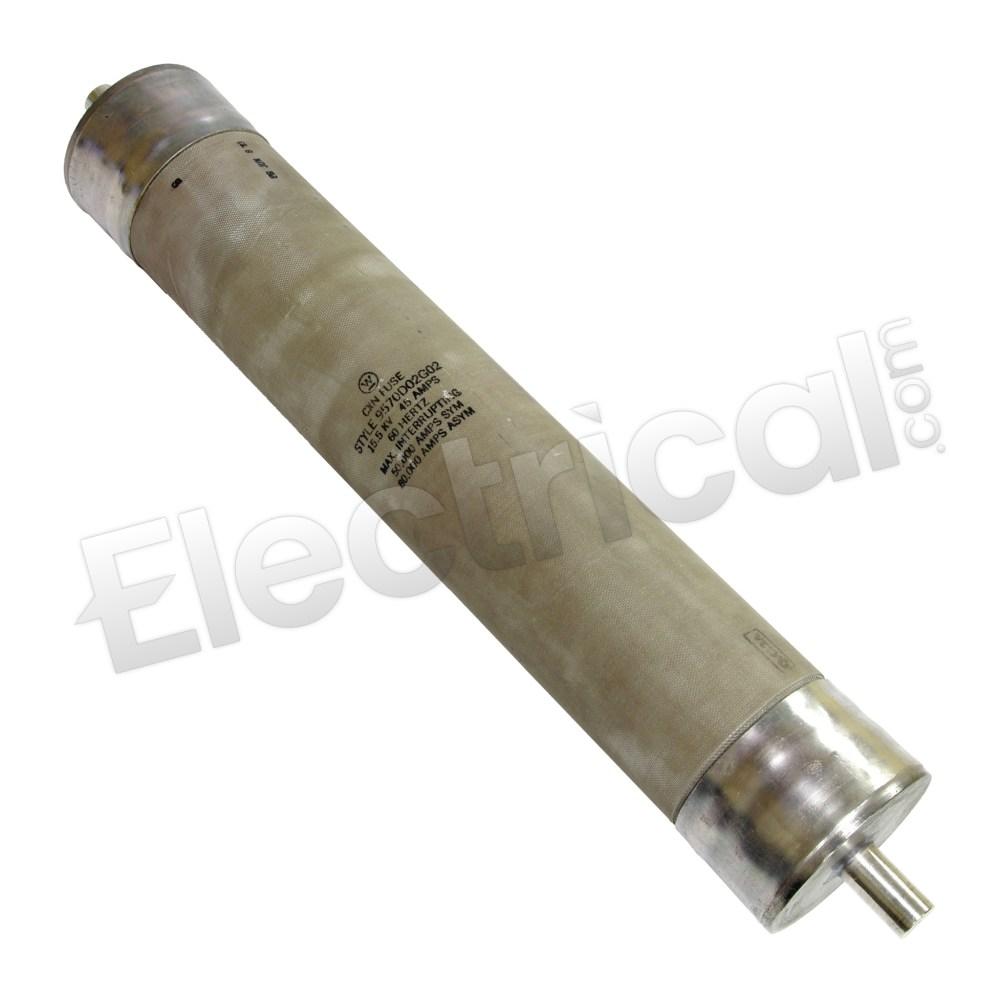

9570D02G02, Eaton, CX, type CXN, class C, current limiting fuse, 15.5kV Maximum (14.4 kV Nominal), 45A, 1 barrel, 3" diameter, [email protected] AIC rating, medium voltage; superseded by 15CXN-45C
| Manufacturer | Eaton | Subcategory | Medium Voltage |
| Family | CX | Amperage Rating | 45 |
| Class Rating | C | Voltage | 15500 |
| Manufacturer | Eaton | ||
| Subcategory | Medium Voltage | ||
| Family | CX | ||
| Amperage Rating | 45 | ||
| Class Rating | C | ||
| Voltage | 15500 |
Electrical.com is NOT an authorized distributor for Square D and therefore the manufacturer’s warranty does not apply. This product does include an Electrical.com 2 year warranty.
9570D02G02 Specifications:
Part Number9570D02G02
Manufacturers
Sub-CategoryMedium Voltage
FamilyCX
TypeCXN
Weight3 lbs
Amperage Rating45
Class RatingC
Voltage15500
Barrels1
Diameter3
AIC Rating[email protected]
