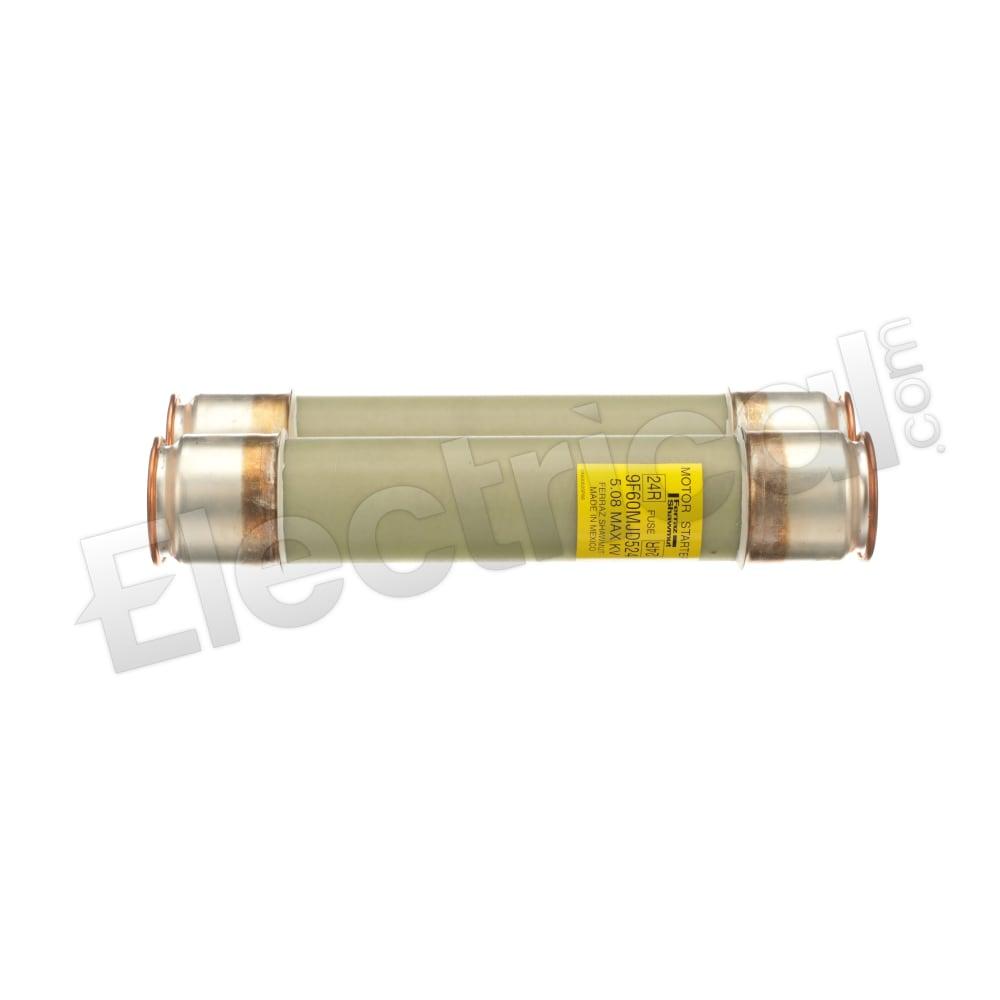

9F60MJD524, General Electric, Medium Voltage, 450A

9F60MJD524

General Electric - Medium Voltage

IMAGES ARE FOR REFERENCE ONLY.

Select Product Condition:

What's the difference?View Specifications

9F60MJD524 Specifications

View Full SpecificationsView Specifications

9F60MJD524, General Electric, 9F60 Series, type , class R, current-limiting, high interrupting, UL listed, Ferrule mounted fuse, 5.08kV, 450A, 2 barrel, 3" diameter, 12" clip center, [email protected] AIC rating, 2400kA minimum IR rating, blown-fuse indicator, medium voltage for motor protection

Manufacturer	General Electric	Subcategory	Medium Voltage
Family	9F60 Series	Amperage Rating	450
Class Rating	R	Connection	Ferrule
Manufacturer	General Electric
Subcategory	Medium Voltage
Family	9F60 Series
Amperage Rating	450
Class Rating	R
Connection	Ferrule

Electrical.com is NOT an authorized distributor for Square D and therefore the manufacturer’s warranty does not apply. This product does include an Electrical.com 2 year warranty.

9F60MJD524 Specifications:

Part Number9F60MJD524

Manufacturers

General Electric

Sub-CategoryMedium Voltage

Family9F60 Series

Weight2 lbs

Amperage Rating450

Class RatingR

ConnectionFerrule

Voltage5080

Clip Center12
