B3TB4122
B3TB4122
IMAGES ARE FOR REFERENCE ONLY.
IMAGES ARE FOR REFERENCE ONLY.
Select Product Condition:
What's the difference?View Specifications
B3TB4122 Specifications
View Full SpecificationsView Specifications

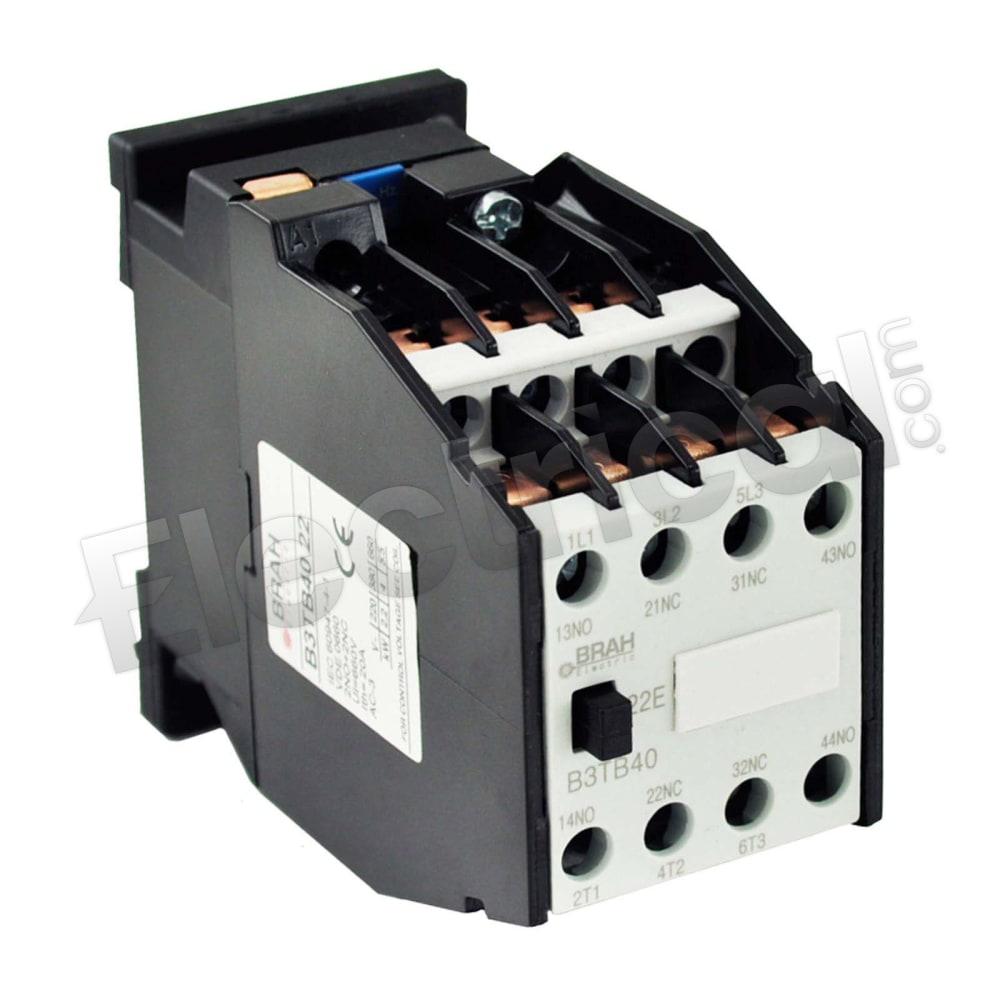

B3TB4122, BRAH Electric, World Series, contactor, type 3TB, 3P, 3PH, 12A, 600V, 3HP @ 230V, 7.5HP @ 460V, 10HP @ 575V, complete with 110/120V coil, 2NO/2NC auxiliary contact, AC magnetic contactor, suitable for use with World Series motor control systems
| Manufacturer | BRAH Electric | Subcategory | Contactor |
| Family | World Series | Amperage | 12 |
| Poles | 3 | Voltage | 600 |
| Manufacturer | BRAH Electric | ||
| Subcategory | Contactor | ||
| Family | World Series | ||
| Amperage | 12 | ||
| Poles | 3 | ||
| Voltage | 600 |
B3TB4122 Specifications:
Part NumberB3TB4122
Manufacturers
Sub-CategoryContactor
FamilyWorld Series
Type3TB
UPC651770326489
Weight1 lbs
Amperage12
Poles3
Voltage600
Phase3
Horsepower10
Coil Voltage Min110
Coil Voltage Max120
