B3TF3110
B3TF3110

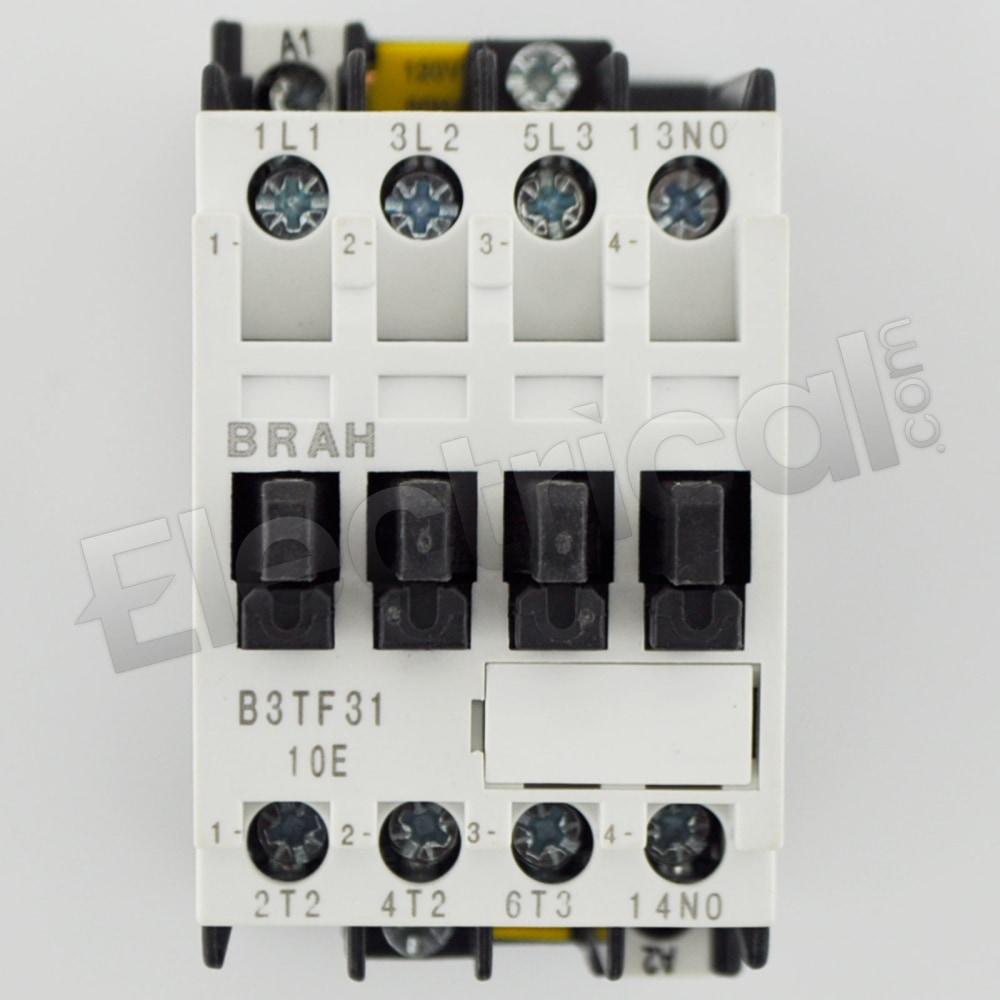

IMAGES ARE FOR REFERENCE ONLY.
IMAGES ARE FOR REFERENCE ONLY.
Select Product Condition:
What's the difference?View Specifications
B3TF3110 Specifications
View Full SpecificationsView Specifications
B3TF3110, BRAH Electric, direct substitute contactors for Siemens World Series 3TF3110, 3 pole, 3 phase, 12Amp, 600Volt, 3HP @ 230V, 7.5HP @ 460V, 10HP @ 575V, complete with 110/120VAC coil, 1 NO aux contact installed, AC contactor
| Manufacturer | BRAH Electric | Subcategory | Contactor |
| Family | World Series | Amperage | 12 |
| Poles | 3 | Voltage | 600 |
| Manufacturer | BRAH Electric | ||
| Subcategory | Contactor | ||
| Family | World Series | ||
| Amperage | 12 | ||
| Poles | 3 | ||
| Voltage | 600 |
B3TF3110 Specifications:
Part NumberB3TF3110
Manufacturers
Sub-CategoryContactor
FamilyWorld Series
Type3TF
UPC651770323860
Weight1 lbs
Amperage12
Poles3
Voltage600
Phase3
Horsepower10
Coil Voltage Min110
Coil Voltage Max120
