B3TF42
B3TF42
IMAGES ARE FOR REFERENCE ONLY.
IMAGES ARE FOR REFERENCE ONLY.
Select Product Condition:
What's the difference?View Specifications
B3TF42 Specifications
View Full SpecificationsView Specifications

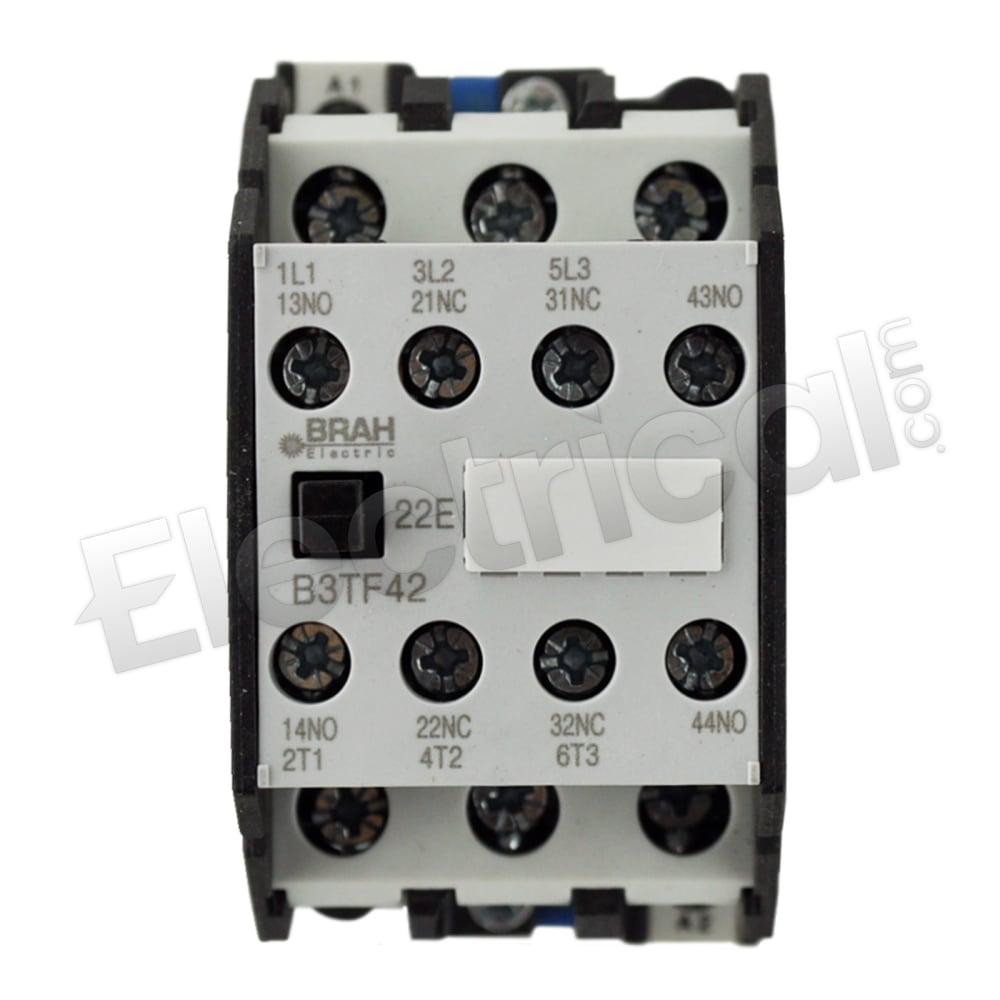

B3TF42, BRAH Electric, World Series, contactor, type 3TF, 3P, 3PH, 16A, 600V, 5HP @ 230V, 10HP @ 460V, 15HP @ 575V, complete with 110/120V coil, 2NO/2NC aux contact installed, AC contactor, suitable for use with World Series motor control systems
| Manufacturer | BRAH Electric | Subcategory | Contactor |
| Family | World Series | Amperage | 16 |
| Poles | 3 | Voltage | 600 |
| Manufacturer | BRAH Electric | ||
| Subcategory | Contactor | ||
| Family | World Series | ||
| Amperage | 16 | ||
| Poles | 3 | ||
| Voltage | 600 |
B3TF42 Specifications:
Part NumberB3TF42
Manufacturers
Sub-CategoryContactor
FamilyWorld Series
Type3TF
UPC651770324706
Weight1 lbs
Amperage16
Poles3
Voltage600
Phase3
Horsepower15
Coil Voltage Min110
Coil Voltage Max120
