B3TF44
B3TF44
IMAGES ARE FOR REFERENCE ONLY.
IMAGES ARE FOR REFERENCE ONLY.
Select Product Condition:
What's the difference?View Specifications
B3TF44 Specifications
View Full SpecificationsView Specifications

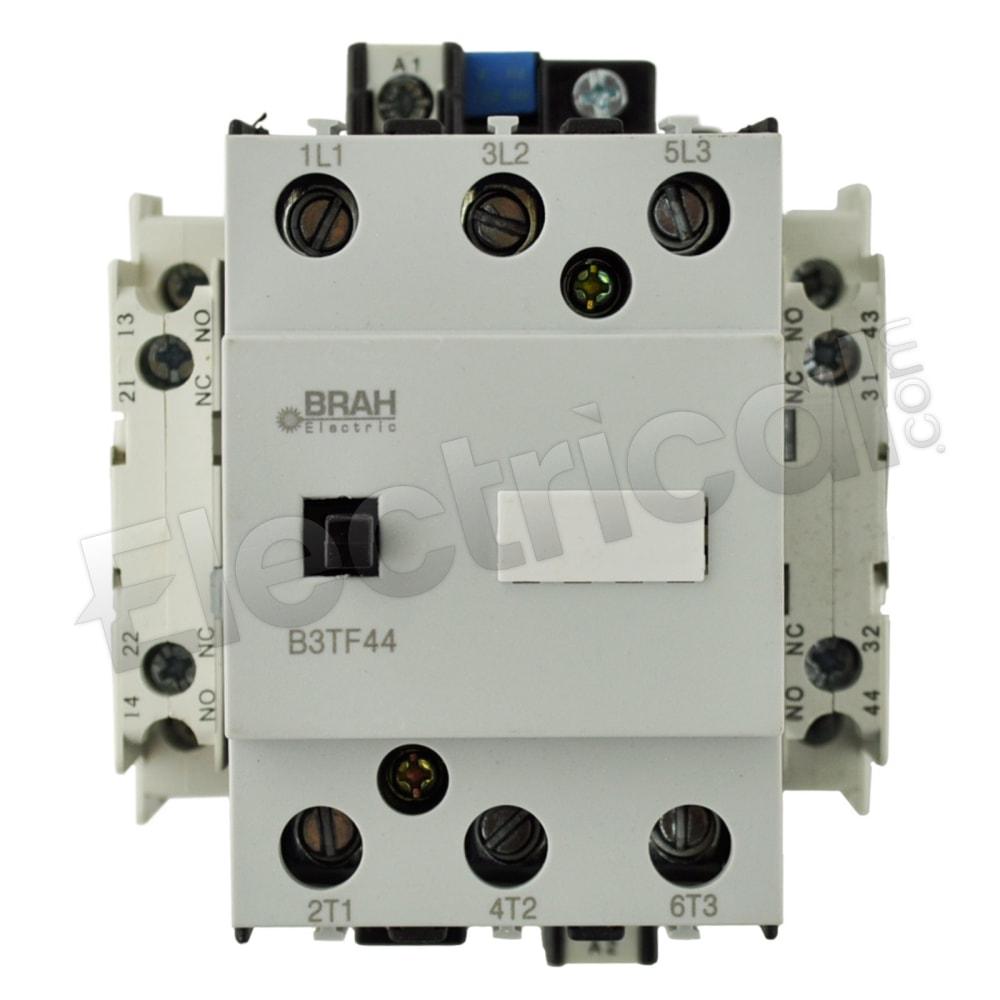

B3TF44, BRAH Electric, World Series, contactor, type 3TF, 3P, 3PH, 32A, 600V, 10HP @ 230V, 25HP @ 460V, 30HP @ 575V, complete with 110/120V coil, 2NO/2NC aux contact installed, AC contactor, suitable for use with World Series motor control systems
| Manufacturer | BRAH Electric | Subcategory | Contactor |
| Family | World Series | Amperage | 32 |
| Poles | 3 | Voltage | 600 |
| Manufacturer | BRAH Electric | ||
| Subcategory | Contactor | ||
| Family | World Series | ||
| Amperage | 32 | ||
| Poles | 3 | ||
| Voltage | 600 |
B3TF44 Specifications:
Part NumberB3TF44
Manufacturers
Sub-CategoryContactor
FamilyWorld Series
Type3TF
UPC651770324188
Weight2 lbs
Amperage32
Poles3
Voltage600
Phase3
Horsepower30
Coil Voltage Min110
Coil Voltage Max120
