B3TF5522
B3TF5522
IMAGES ARE FOR REFERENCE ONLY.
IMAGES ARE FOR REFERENCE ONLY.
Select Product Condition:
What's the difference?View Specifications
B3TF5522 Specifications
View Full SpecificationsView Specifications

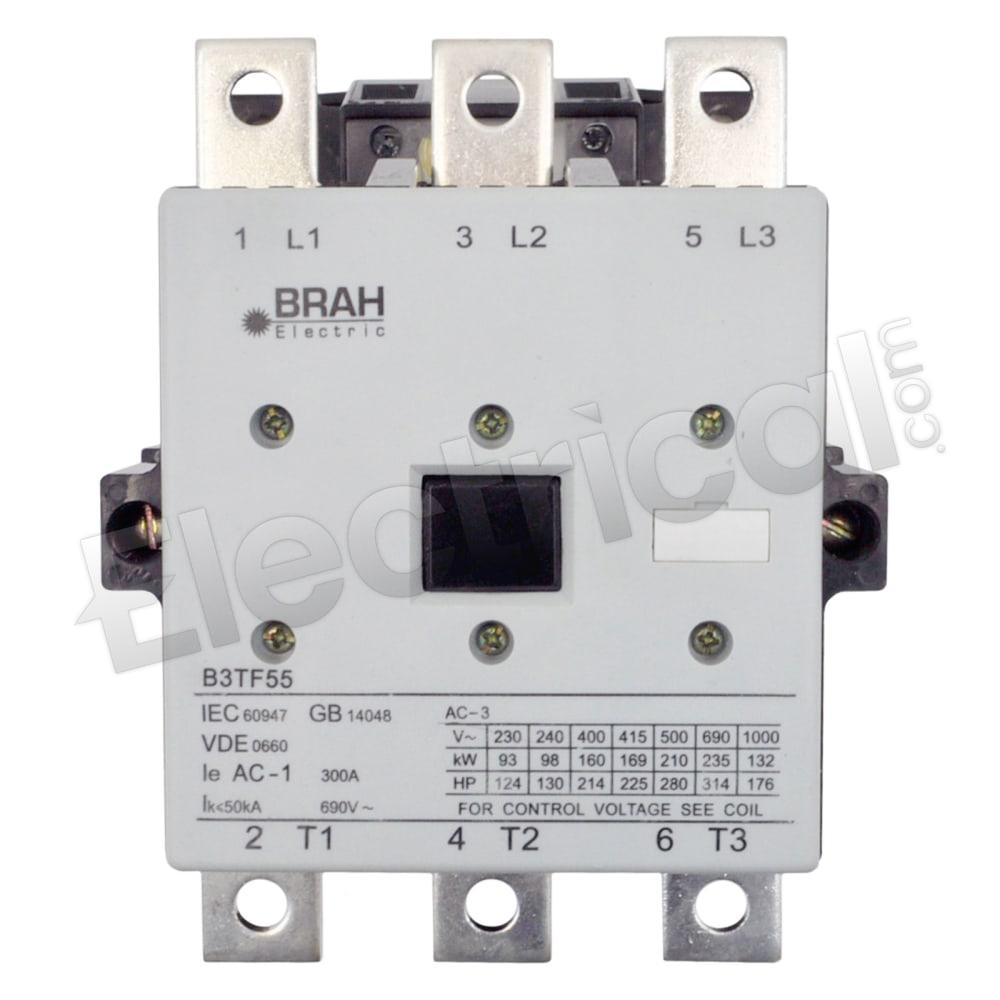

B3TF5522, BRAH Electric, substitute contactor for Siemens , World Series, type 3TF, 3P, 3PH, 300A, 600V, 125HP @ 230V, 250HP @ 460V, 300HP @ 575V, complete with 110/120V AC coil, 2 N/O - 2 N/C auxiliary contact, AC magnetic contactor, suitable for use with 3TF series motor control systems
| Manufacturer | BRAH Electric | Subcategory | Contactor |
| Family | World Series | Amperage | 300 |
| Poles | 3 | Voltage | 600 |
| Manufacturer | BRAH Electric | ||
| Subcategory | Contactor | ||
| Family | World Series | ||
| Amperage | 300 | ||
| Poles | 3 | ||
| Voltage | 600 |
B3TF5522 Specifications:
Part NumberB3TF5522
Manufacturers
Sub-CategoryContactor
FamilyWorld Series
Type3TF
UPC651770324546
Weight24 lbs
Amperage300
Poles3
Voltage600
Phase3
Horsepower300
Coil Voltage Min110
Coil Voltage Max120
