BDP2P40A24V
BDP2P40A24V
IMAGES ARE FOR REFERENCE ONLY.
IMAGES ARE FOR REFERENCE ONLY.
Select Product Condition:
What's the difference?View Specifications
BDP2P40A24V Specifications
View Full SpecificationsView Specifications

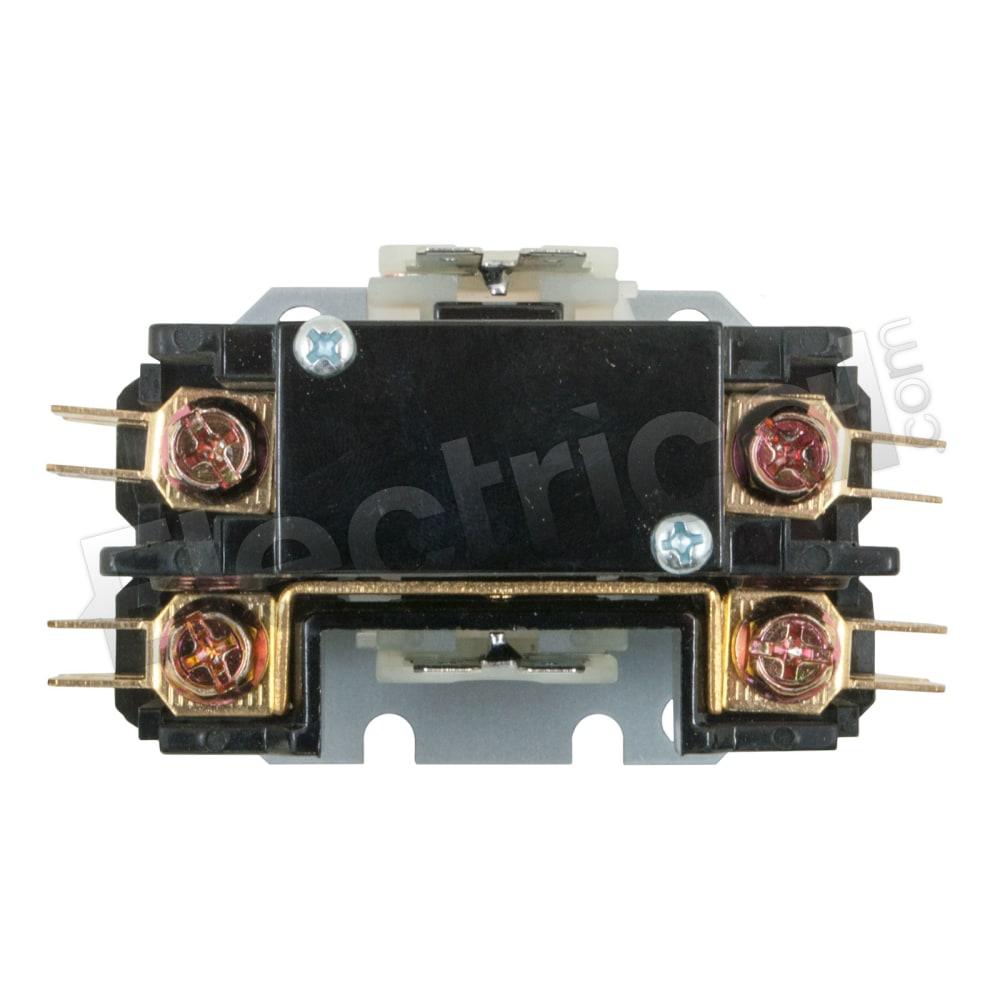

BDP2P40A24V, BRAH Electric, Elite Series, UL listed direct substitute definite purpose contactor, type BDP, 2P, 1PH, 40A, 160LRA@600V, 50A resistive, box style terminal connection, open type/no enclosure, complete with 24V AC 50/60Hz coil; auxiliary contacts and selector switches sold separately
| Manufacturer | BRAH Electric | Subcategory | Contactor |
| Family | Elite Series | Amperage | 40 |
| Poles | 2 | Voltage | 600 |
| Manufacturer | BRAH Electric | ||
| Subcategory | Contactor | ||
| Family | Elite Series | ||
| Amperage | 40 | ||
| Poles | 2 | ||
| Voltage | 600 |
BDP2P40A24V Specifications:
Part NumberBDP2P40A24V
Manufacturers
Sub-CategoryContactor
FamilyElite Series
TypeBDP
UPC699252493977
Weight1 lbs
Amperage40
Poles2
Voltage600
Phase1
Coil Voltage Max24
