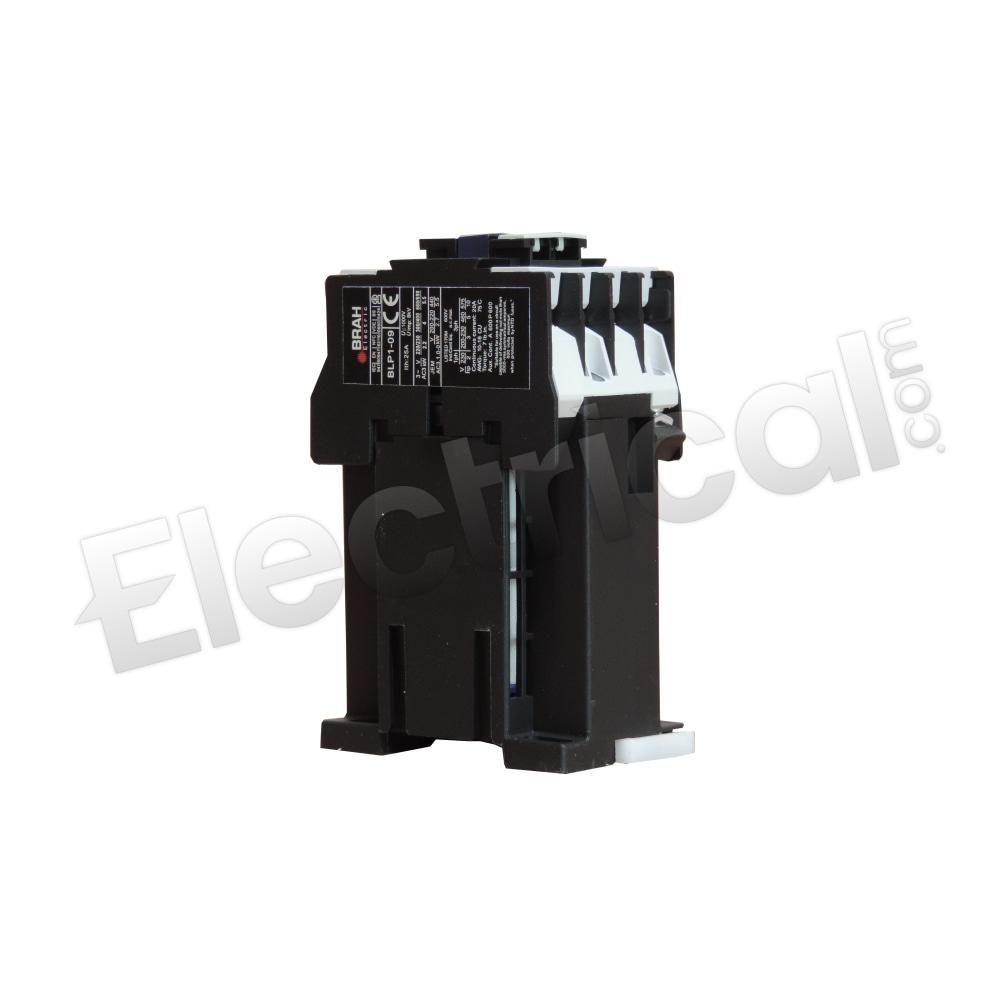

BRAH Electric Contactor BLP1D0910GD

IMAGES ARE FOR REFERENCE ONLY.

Select Product Condition:

View Specifications


BLP1D0910GD Specifications

View Specifications

BLP1D0910GD, BRAH Electric, TeSys D, direct substitute contactor, type LP1D, 3P, 3PH, 25A, 600V, 2HP @ 240V, 5HP @ 480V, 7.5HP @ 600V, complete with 125V DC coil, 1 N/O auxiliary contact, DC magnetic contactor, suitable for use with LP1-D series motor control systems

Manufacturer
BRAH Electric
Subcategory
Contactor
Family
TeSys D
Amperage
25
Poles
3
Voltage
600
Pearl Logo
Standard Warranty Logo
Ships WorldWide Logo
Rush Shipping Logo
BLP1D0910GD Specifications:
Part NumberBLP1D0910GD
Manufacturers
Sub-CategoryContactor
FamilyTeSys D
TypeLP1D
UPC651770329848
Weight1 lbs
Amperage25
Poles3
Voltage600
Phase3
Horsepower7.5
Coil Voltage Min120
Coil Voltage Max125
