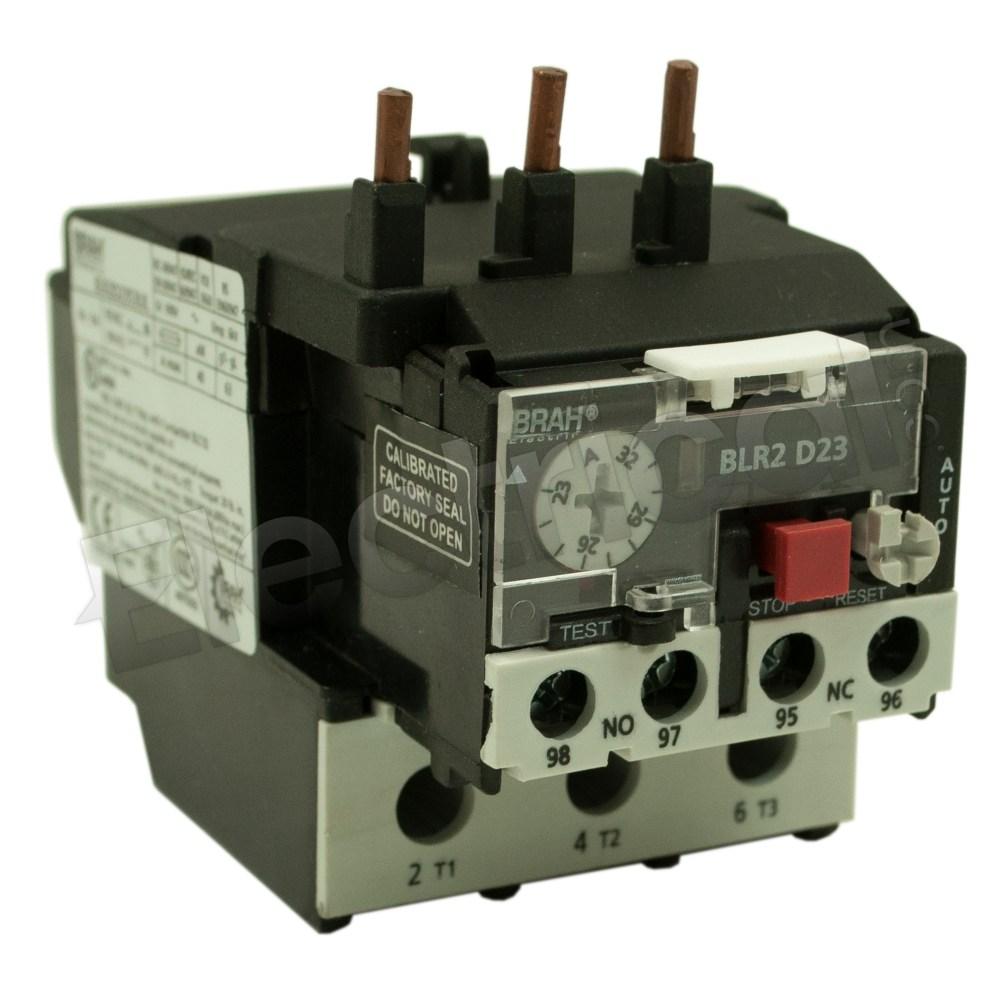

BRAH Electric Overload Relay BLR2D2353UL

IMAGES ARE FOR REFERENCE ONLY.

Select Product Condition:

View Specifications


BLR2D2353UL Specifications

View Specifications

BLR2D2353UL, BRAH Electric, direct replacement overload relay for Telemecanique LR2D2353, designed with solid state electronic overload technology to ensure top performance, control and protection for electric motors, adjustable FLA amperage dials, with 23 - 32 amp range settings, suitable for use with BLC1D09UL - BLC1D32UL magnetic contactors, to assemble accross-the-line, two-speed and reversing type motor starters, certified & registered with Underwriters Laboratories, ANSI / UL508 Listed by BRAH Electric Mfg.

Manufacturer
BRAH Electric
Subcategory
Overload Relay
Family
TeSys D
Pearl Logo
Standard Warranty Logo
Ships WorldWide Logo
Rush Shipping Logo
BLR2D2353UL Specifications:
Part NumberBLR2D2353UL
Manufacturers
Sub-CategoryOverload Relay
FamilyTeSys D
TypeBLR2D
UPC699252497234
Weight1 lbs
Suitable ForBLC1D25,BLC1D32,BLC2D25,BLC2D32
Relay StyleSolid State
Amperage Min23
Amperage Max32
