AE56GNS0AB
AE56GNS0AB
IMAGES ARE FOR REFERENCE ONLY.
IMAGES ARE FOR REFERENCE ONLY.
Select Product Condition:
What's the difference?View Specifications
AE56GNS0AB Specifications
View Full SpecificationsView Specifications

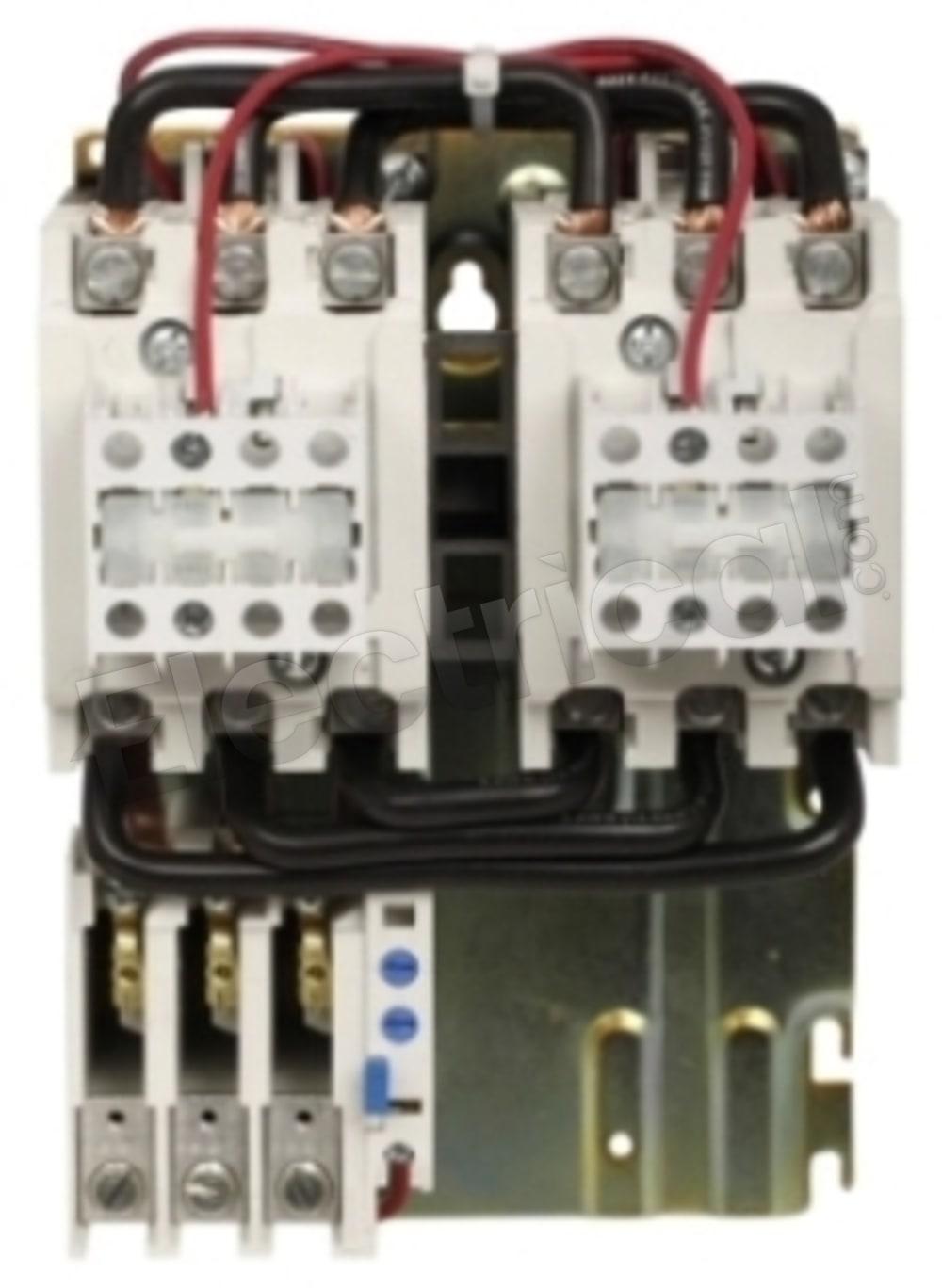

AE56GNS0AB, Cutler Hammer, Freedom Series, type AE56, 3P, 1 or 3PH, 37A, 600V, 20hp @ 380 50Hz, max UL hp: 3hp @ 115V 1PH, 5hp @ 230V 1PH, 7.5hp @ 208V 3PH, 10hp @ 240V 3PH, 25hp @ 480V 3PH, 30hp @ 600V 3PH; max kW rating: 18.5hp @ 380V 3PH, 18.5hp @ 415/440V 3PH, 22hp @ 500/550V 3PH, 11hp @ 660V 3PH, complete with 110V 50Hz or 120V 60Hz, max UL AC-3 ampere rating AC 37A, IEC 947 AC-1 thermal current 50A, AC coil, N/O side mounted auxiliary contact, interchangeable heater overload relay, reversing, open type starters, IEC size G, suitable for use with Freedom Series motor control systems
| Manufacturer | Cutler Hammer | Subcategory | Motor Starter |
| Family | Freedom Series | Amperage | 37 |
| Poles | 3 | Phase | 3 |
| Manufacturer | Cutler Hammer | ||
| Subcategory | Motor Starter | ||
| Family | Freedom Series | ||
| Amperage | 37 | ||
| Poles | 3 | ||
| Phase | 3 |
Electrical.com is NOT an authorized distributor for Square D and therefore the manufacturer’s warranty does not apply. This product does include an Electrical.com 2 year warranty.
