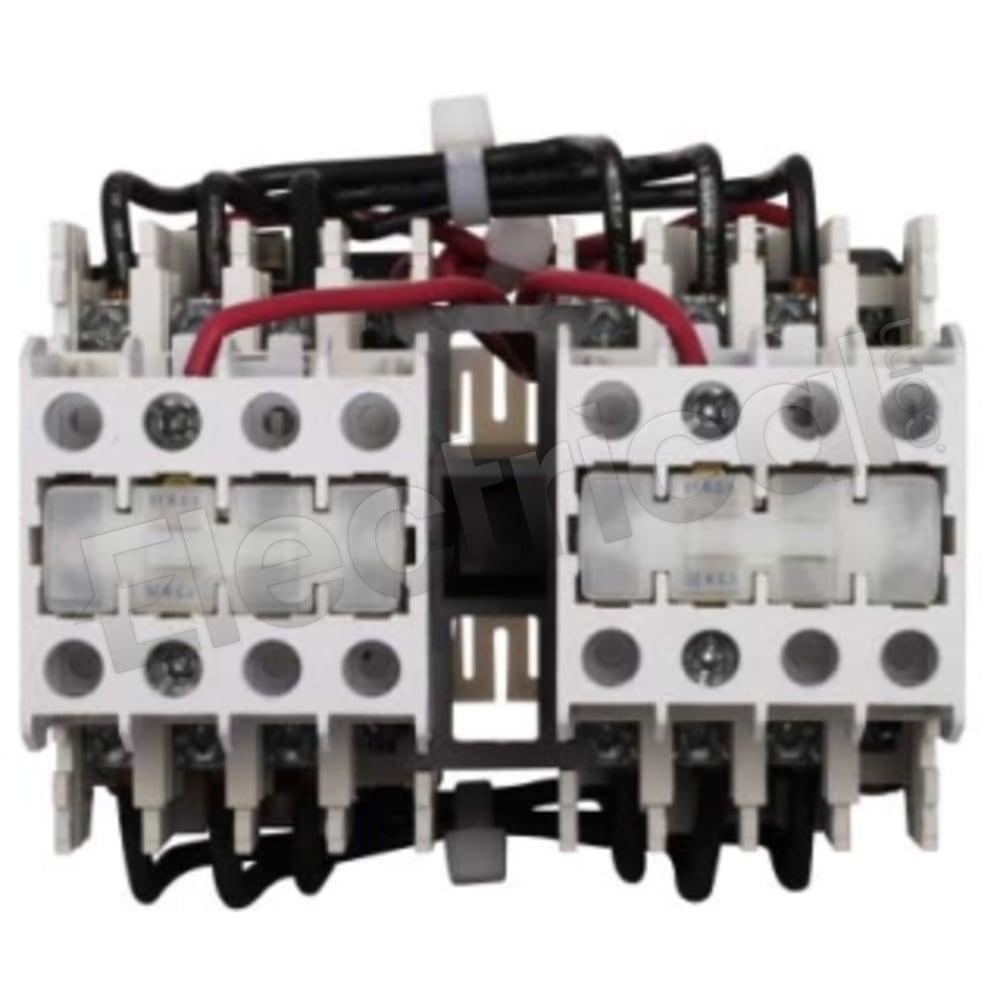

CE55AN3BB
CE55AN3BB
IMAGES ARE FOR REFERENCE ONLY.
IMAGES ARE FOR REFERENCE ONLY.
Select Product Condition:
What's the difference?View Specifications
CE55AN3BB Specifications
View Full SpecificationsView Specifications
CE55AN3BB, Cutler Hammer, Freedom Series, type CE55AN, 3P, 1 or 3PH, 7A, 600V, max UL hp: 0.25hp @ 115V 1PH, 0.5hp @ 230V 1PH, 1.5hp @ 200V 3PH, 1.5hp @ 230V 3PH, 3hp @ 460V 3PH, 5hp @ 575V 3PH; max kW rating: 1.1hp @ 220V 3PH, 2.2hp @ 380V 3PH, 2.2hp @ 415/440V 3PH, 4hp @ 500/550V 3PH, 1.5hp @ 660V 3PH, complete with 220V 50Hz or 240V 60Hz, max UL AC-3 ampere rating AC 7A, IEC 947 AC-1 thermal current 20A, AC coil, reversing, open type contactors, IEC size A, suitable for use with Freedom Series motor control systems
| Manufacturer | Cutler Hammer | Subcategory | Contactor |
| Family | Freedom Series | Amperage | 7 |
| Poles | 3 | Voltage | 600 |
| Manufacturer | Cutler Hammer | ||
| Subcategory | Contactor | ||
| Family | Freedom Series | ||
| Amperage | 7 | ||
| Poles | 3 | ||
| Voltage | 600 |
Electrical.com is NOT an authorized distributor for Square D and therefore the manufacturer’s warranty does not apply. This product does include an Electrical.com 2 year warranty.
