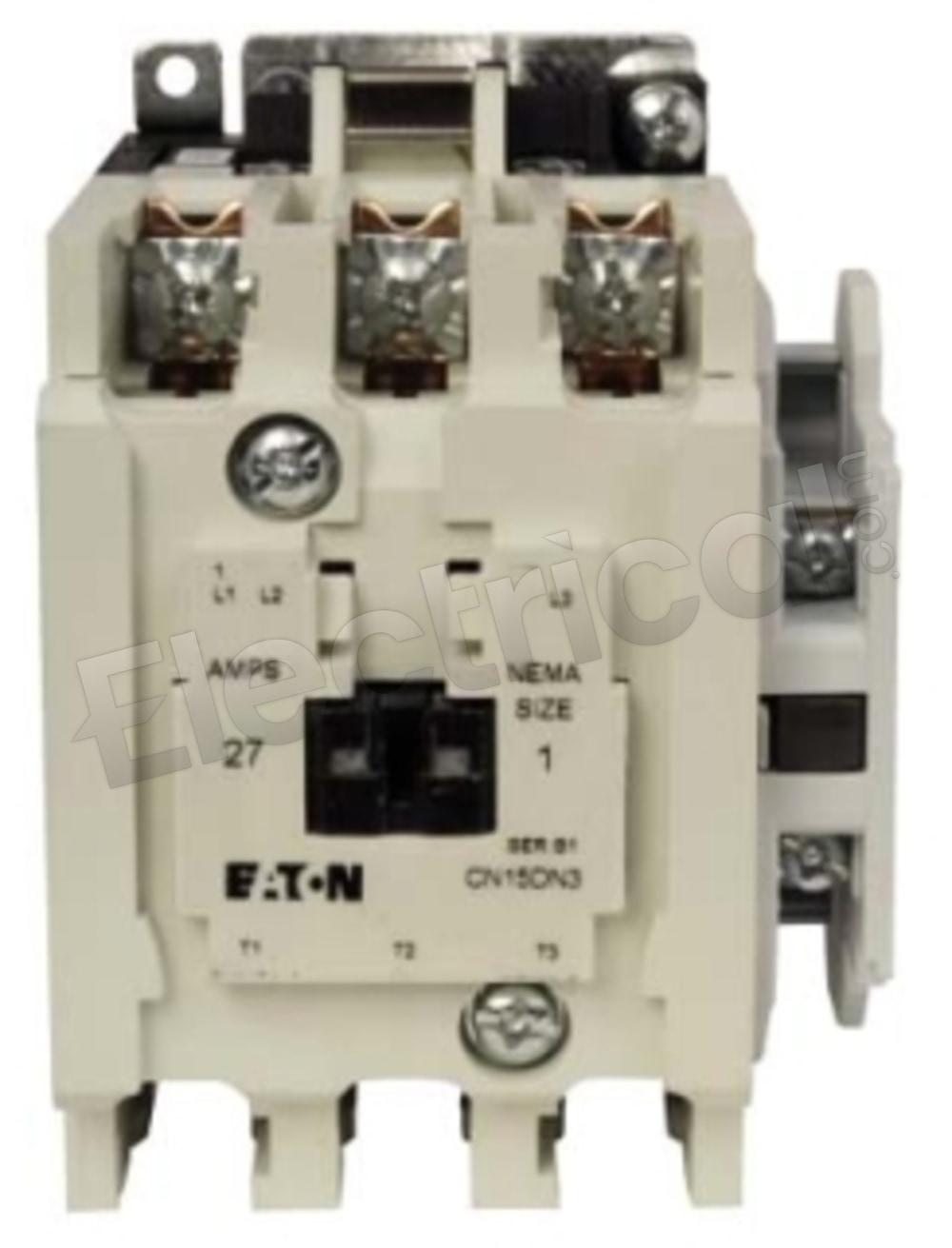

CN15DN2DB Cutler Hammer Freedom Series 27A Contactor

CN15DN2DB

Cutler Hammer - Contactor

IMAGES ARE FOR REFERENCE ONLY.

Select Product Condition:

What's the difference?View Specifications

CN15DN2DB Specifications

View Full SpecificationsView Specifications

CN15DN2DB, Cutler Hammer, Freedom Series, type CN15DN, 2P, 1 or 3PH, 27A, 600V, 2hp @ 115V 1PH, 3hp @ 230V 1PH, 7.5hp @ 208V 3PH, 7.5hp @ 240V 3PH, 10hp @ 480V 3PH, 10hp @ 600V 3PH, complete with 550V 50Hz or 600V 60Hz, AC coil, non-reversing contactors, NEMA size 1, suitable for use with Freedom Series motor control systems

Manufacturer	Cutler Hammer	Subcategory	Contactor
Family	Freedom Series	Amperage	27
Poles	2	Voltage	600
Manufacturer	Cutler Hammer
Subcategory	Contactor
Family	Freedom Series
Amperage	27
Poles	2
Voltage	600

Electrical.com is NOT an authorized distributor for Square D and therefore the manufacturer’s warranty does not apply. This product does include an Electrical.com 2 year warranty.

CN15DN2DB Specifications:

Part NumberCN15DN2DB

Manufacturers

Cutler Hammer

Sub-CategoryContactor

FamilyFreedom Series

TypeCN15DN

Weight8 lbs

Amperage27

Poles2

Voltage600

Phase3
