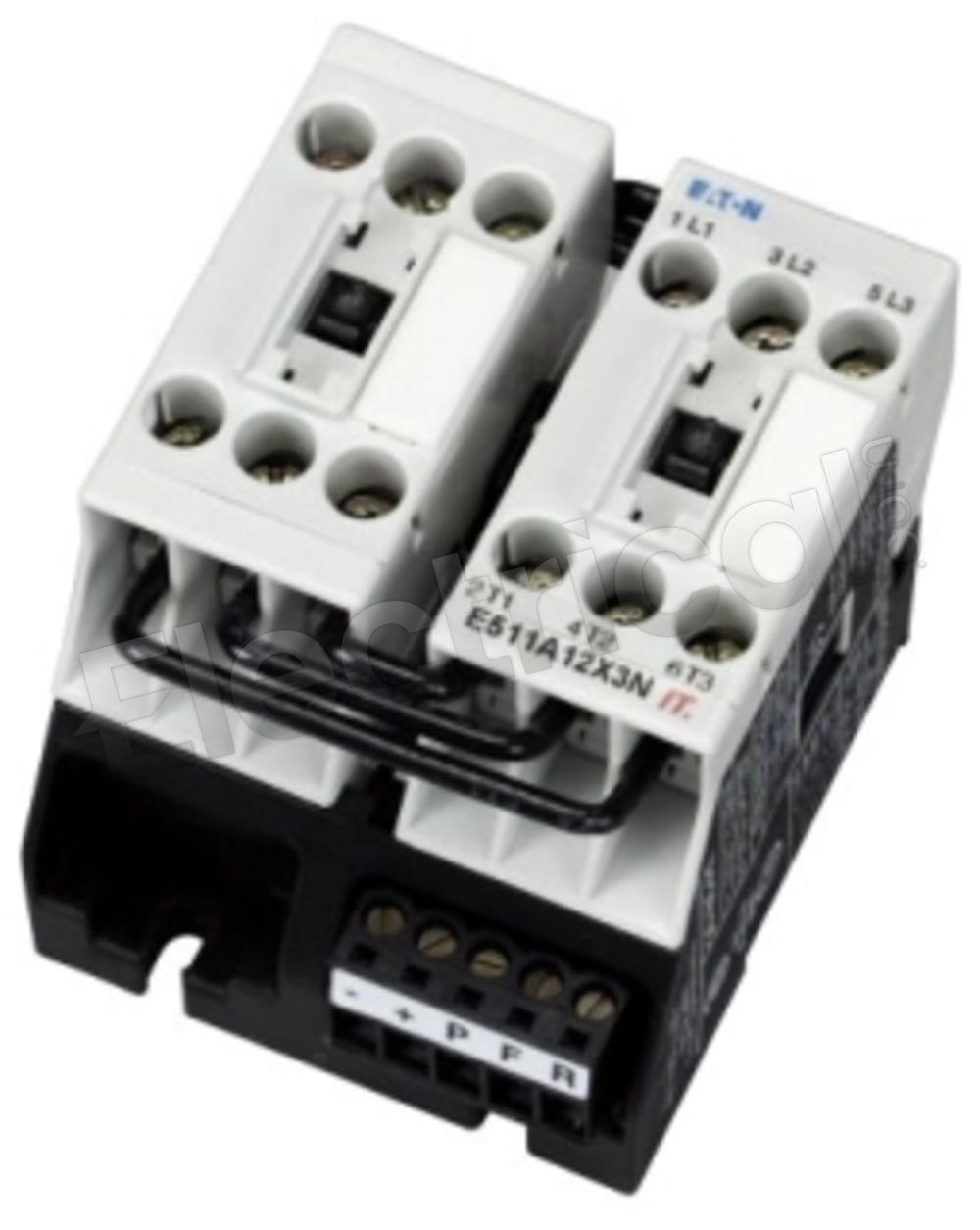

E511A06X3N Cutler Hammer IT Electro-Mechanical Line 6A Contactor

E511A06X3N

Cutler Hammer - Contactor

IMAGES ARE FOR REFERENCE ONLY.

Select Product Condition:

What's the difference?View Specifications

E511A06X3N Specifications

View Full SpecificationsView Specifications

E511A06X3N, Cutler Hammer, IT Electro-Mechanical Line, type E511, IEC, DC-operated full voltage reversing contactor, A-frame, 3P, 3PH, 6A, 600V, .25HP @ 115/120V, .50HP @ 220/230V, 1HP @ 200/208V, 1.5HP @ 230/240V, 3HP @ 380/415V, 3HP @ 460/480V, 3HP @ 575/600V, complete with 24V DC coil, suitable for use with IT IEC Electro-Mechanical motor control systems

Manufacturer	Cutler Hammer	Subcategory	Contactor
Family	IT Electro-Mechanical Line	Amperage	6
Poles	3	Voltage	600
Manufacturer	Cutler Hammer
Subcategory	Contactor
Family	IT Electro-Mechanical Line
Amperage	6
Poles	3
Voltage	600

Electrical.com is NOT an authorized distributor for Square D and therefore the manufacturer’s warranty does not apply. This product does include an Electrical.com 2 year warranty.

E511A06X3N Specifications:

Part NumberE511A06X3N

Manufacturers

Cutler Hammer

Sub-CategoryContactor

FamilyIT Electro-Mechanical Line

TypeE511

Amperage6

Poles3

Voltage600

Phase3

Coil Voltage Min24
