ECL03C1B6A

Cutler Hammer - Contactor

Cutler Hammer Contactor ECL03C1B6A

IMAGES ARE FOR REFERENCE ONLY.

Select Product Condition:

View Specifications

ECL03C1B6A Specifications

View Specifications

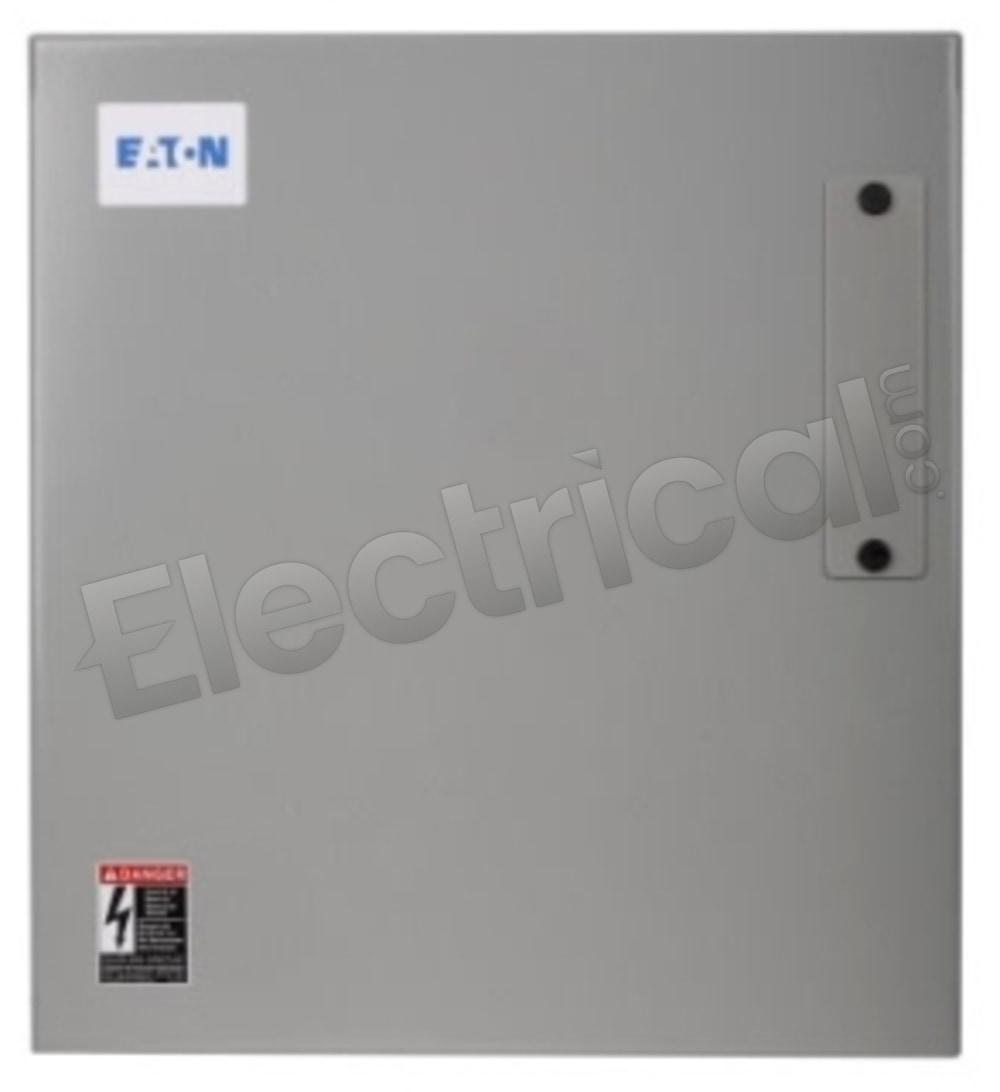

ECL03C1B6A, Cutler Hammer, Class ECL03, electrically held lighting contactor, 6P, 3PH, 30A, 600V, enclosed in NEMA 1 enclosure, complete with 220/240V AC 50/60 Hz coil and 1NO auxiliary contact mounted on right side, UL listed/CSA certified

Manufacturer
Cutler Hammer
Subcategory
Contactor
Family
Class ECL03
Amperage
30
Poles
6
Voltage
600

Electrical.com is NOT an authorized distributor for Square D and therefore the manufacturer’s warranty does not apply. This product does include an Electrical.com 2 year warranty.

Pearl Logo
Standard Warranty Logo
Ships WorldWide Logo
Rush Shipping Logo
ECL03C1B6A Specifications:
Part NumberECL03C1B6A
Manufacturers
Cutler Hammer
Sub-CategoryContactor
FamilyClass ECL03
TypeECL03
Weight10 lbs
Amperage30
Poles6
Voltage600
Phase3
Coil Voltage Min220
Coil Voltage Max240
