ECL03C2DBA
ECL03C2DBA
IMAGES ARE FOR REFERENCE ONLY.
IMAGES ARE FOR REFERENCE ONLY.
Select Product Condition:
What's the difference?View Specifications
ECL03C2DBA Specifications
View Full SpecificationsView Specifications

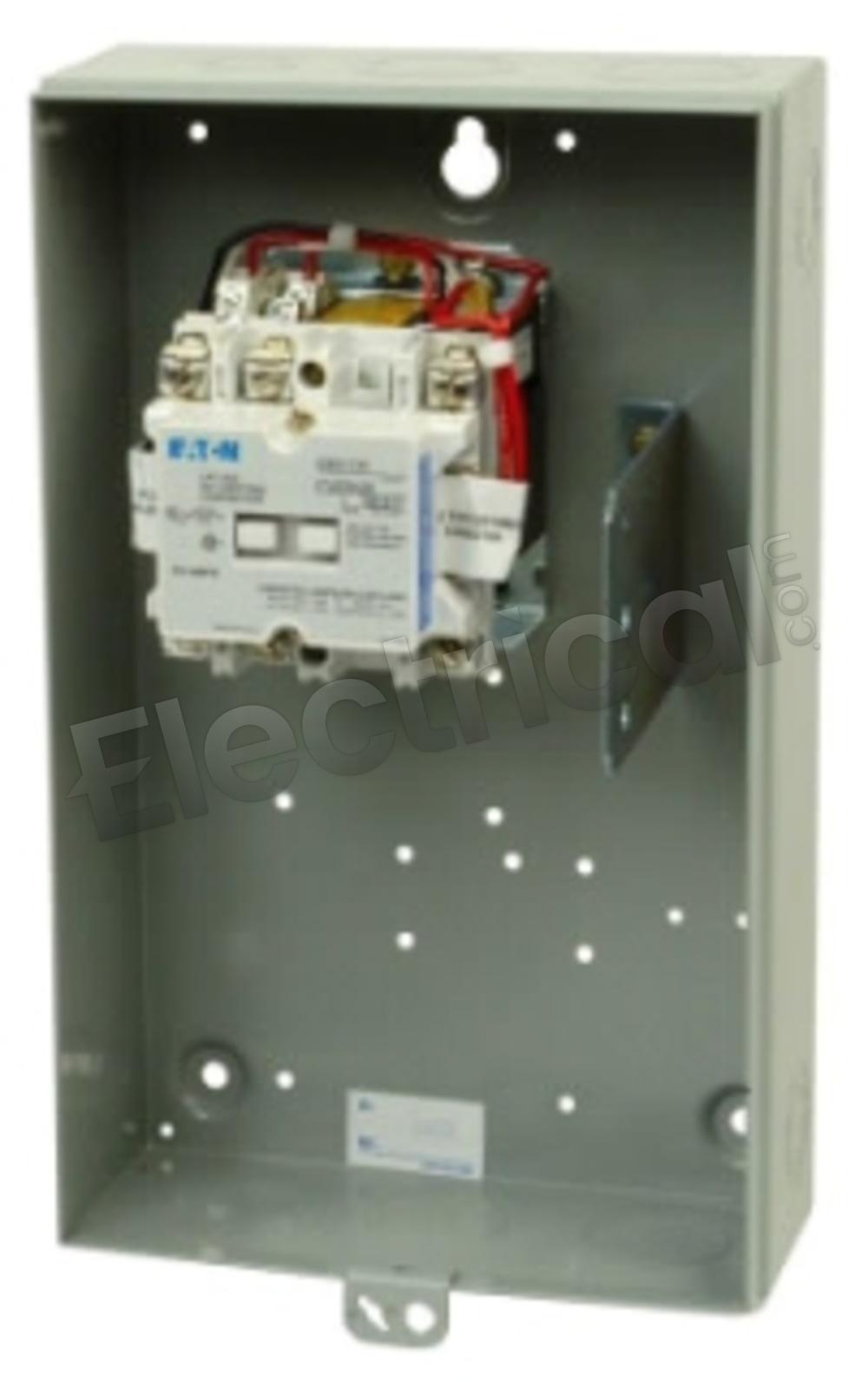

ECL03C2DBA, Cutler Hammer, Class ECL03, electrically held lighting contactor, 12P, 3PH, 30A, 600V, enclosed in NEMA 3R rainproof enclosure, complete with 550/600V AC 50/60 Hz coil and 1NO auxiliary contact mounted on right side, UL listed/CSA certified
| Manufacturer | Cutler Hammer | Subcategory | Contactor |
| Family | Class ECL03 | Amperage | 30 |
| Poles | 12 | Voltage | 600 |
| Manufacturer | Cutler Hammer | ||
| Subcategory | Contactor | ||
| Family | Class ECL03 | ||
| Amperage | 30 | ||
| Poles | 12 | ||
| Voltage | 600 |
Electrical.com is NOT an authorized distributor for Square D and therefore the manufacturer’s warranty does not apply. This product does include an Electrical.com 2 year warranty.
ECL03C2DBA Specifications:
Part NumberECL03C2DBA
Manufacturers
Sub-CategoryContactor
FamilyClass ECL03
TypeECL03
Weight25 lbs
Amperage30
Poles12
Voltage600
Phase3
Coil Voltage Min550
Coil Voltage Max600
