ECN0512BAA

Cutler Hammer - Motor Starter

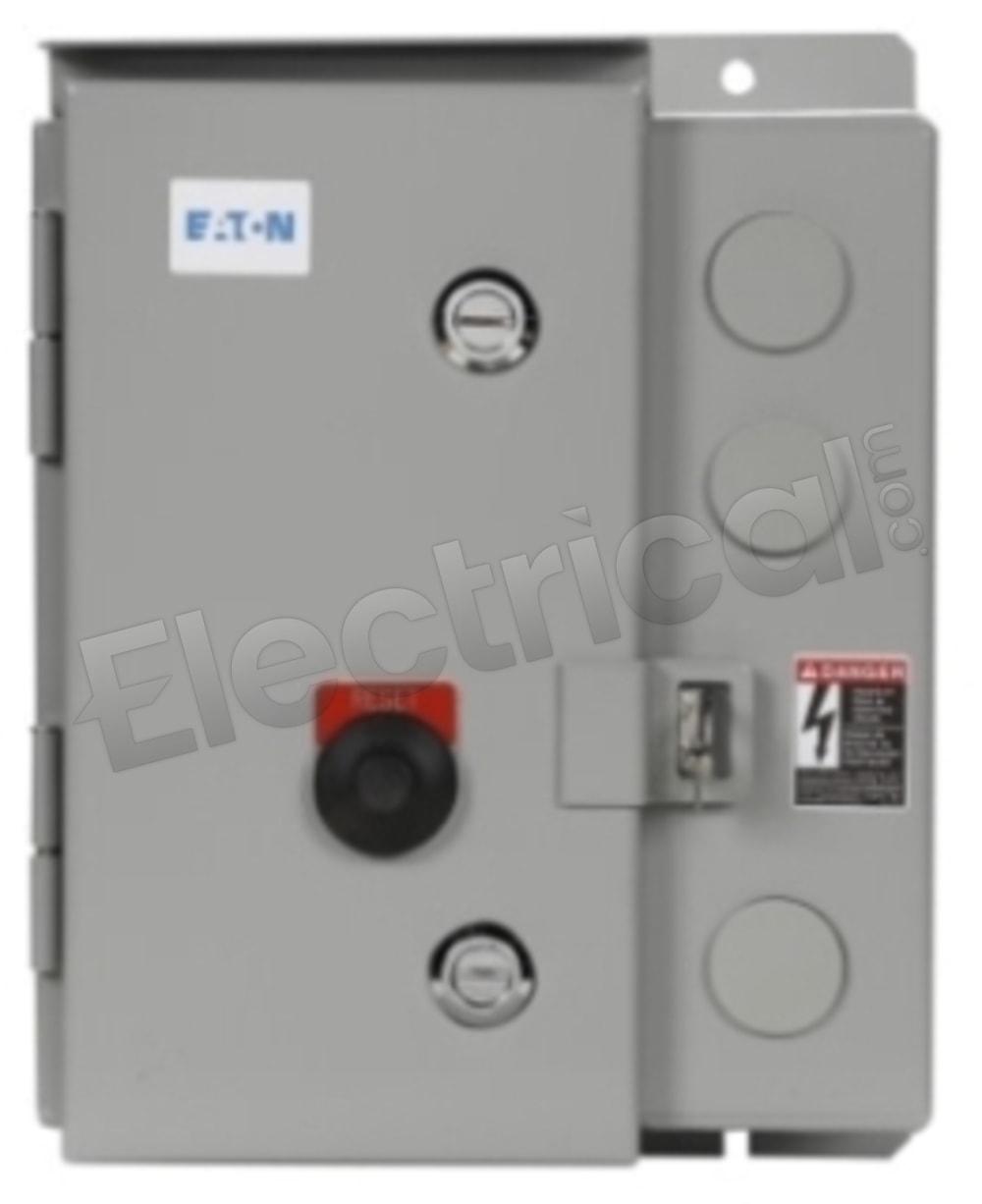

Cutler Hammer Motor Starter ECN0512BAA

IMAGES ARE FOR REFERENCE ONLY.

Select Product Condition:

View Specifications

ECN0512BAA Specifications

View Specifications

ECN0512BAA, Cutler Hammer, Freedom Series, non-combination, non-reversing motor starter, type ECN05, 3P, 3PH, 7.5 HP @ 230V, 600V, complete with 240V coil, NEMA size 1, enclosed in NEMA Type 3R rainproof enclosure, suitable for use with Freedom Series motor control systems

Manufacturer
Cutler Hammer
Subcategory
Motor Starter
Family
Freedom Series
Amperage
27
Poles
3
Phase
3

Electrical.com is NOT an authorized distributor for Square D and therefore the manufacturer’s warranty does not apply. This product does include an Electrical.com 2 year warranty.

Pearl Logo
Standard Warranty Logo
Ships WorldWide Logo
Rush Shipping Logo
ECN0512BAA Specifications:
Part NumberECN0512BAA
Manufacturers
Cutler Hammer
Sub-CategoryMotor Starter
FamilyFreedom Series
TypeECN05
Weight20 lbs
Amperage27
Poles3
Phase3
Voltage600
NEMA Rating1
Coil Voltage Min240
Coil Voltage Max240
