N511BS0X3N
N511BS0X3N
IMAGES ARE FOR REFERENCE ONLY.
IMAGES ARE FOR REFERENCE ONLY.
Select Product Condition:
What's the difference?View Specifications
N511BS0X3N Specifications
View Full SpecificationsView Specifications

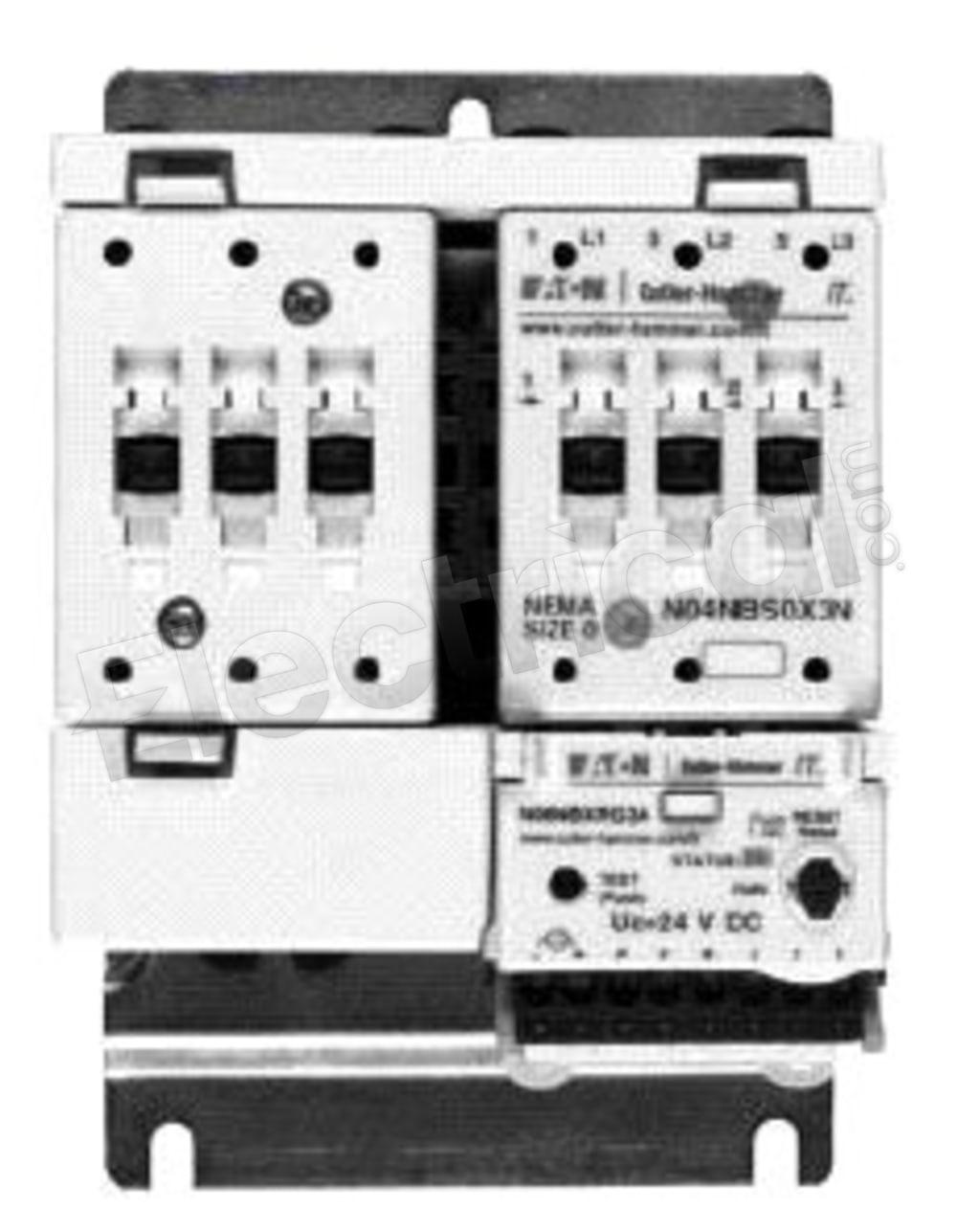

N511BS0X3N, Cutler Hammer, IT Electro-Mechanical Line, type N511, 3P, 1 and 3PH, 18A, 600V, 1hp @ 115V 60Hz 1PH, 2hp @ 230V 60Hz 1PH, 3hp @ 200-208V 60Hz 3PH, 3hp @ 230-240V 60Hz 3PH, 5hp @ 460-480V 60Hz 3PH, 5hp @ 575-600V 60Hz 3PH, 5hp @ 380V 50Hz 3PH, complete with 24VDC, DC coil, reversing contactors, NEMA size 0, suitable for use with Cutler Hammer motor control systems
| Manufacturer | Cutler Hammer | Subcategory | Contactor |
| Family | IT Electro-Mechanical Line | Amperage | 18 |
| Poles | 3 | Voltage | 600 |
| Manufacturer | Cutler Hammer | ||
| Subcategory | Contactor | ||
| Family | IT Electro-Mechanical Line | ||
| Amperage | 18 | ||
| Poles | 3 | ||
| Voltage | 600 |
