V210MTCJC

Cutler Hammer - Motor Starter

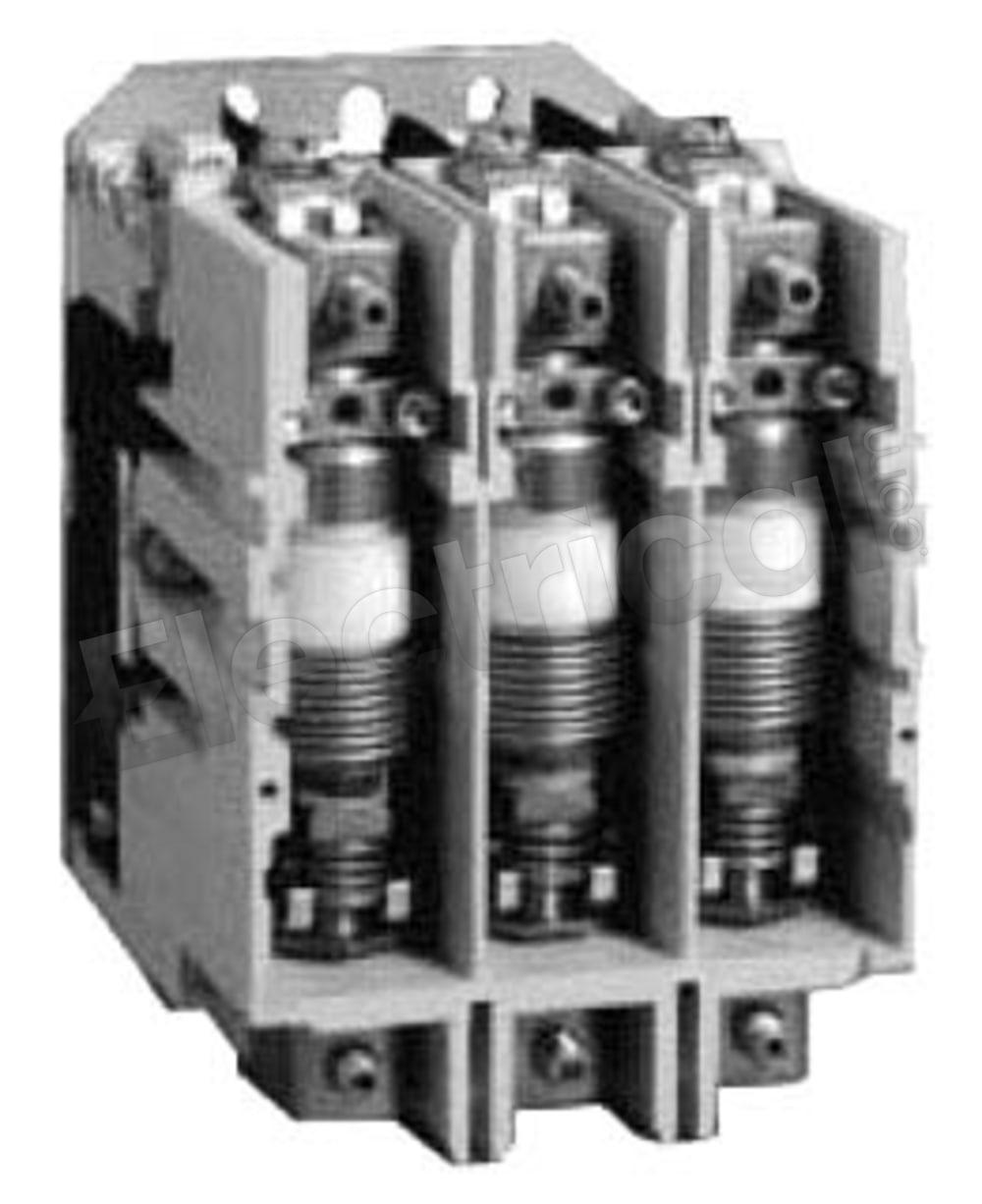

Cutler Hammer Motor Starter V210MTCJC

IMAGES ARE FOR REFERENCE ONLY.

Select Product Condition:

View Specifications

V210MTCJC Specifications

View Specifications

V210MTCJC, Cutler Hammer, V210, type V210, 3P, 3PH, 320A, 1500V, 100hp @ 200V, 125hp @ 230V, 200hp @ 380V, 250hp @ 460V, 300hp @ 575V, 400hp @ 795V, 800hp @ 1500V, complete with 110V/120V 50/60Hz, reversing special purpose vacuum starters, NEMA size 00, suitable for use with Cutler Hammer motor control systems

Manufacturer
Cutler Hammer
Subcategory
Motor Starter
Family
V210
Amperage
320
Poles
3
Phase
3

Electrical.com is NOT an authorized distributor for Cutler Hammer and therefore the manufacturer’s warranty does not apply. This product does include an Electrical.com 2 year warranty.

Pearl Logo
Standard Warranty Logo
Ships WorldWide Logo
Rush Shipping Logo
V210MTCJC Specifications:
Part NumberV210MTCJC
Manufacturers
Cutler Hammer
Sub-CategoryMotor Starter
FamilyV210
TypeV210
Weight75 lbs
Amperage320
Poles3
Phase3
Voltage1500
NEMA Rating00
Coil Voltage Min110
Coil Voltage Max120
