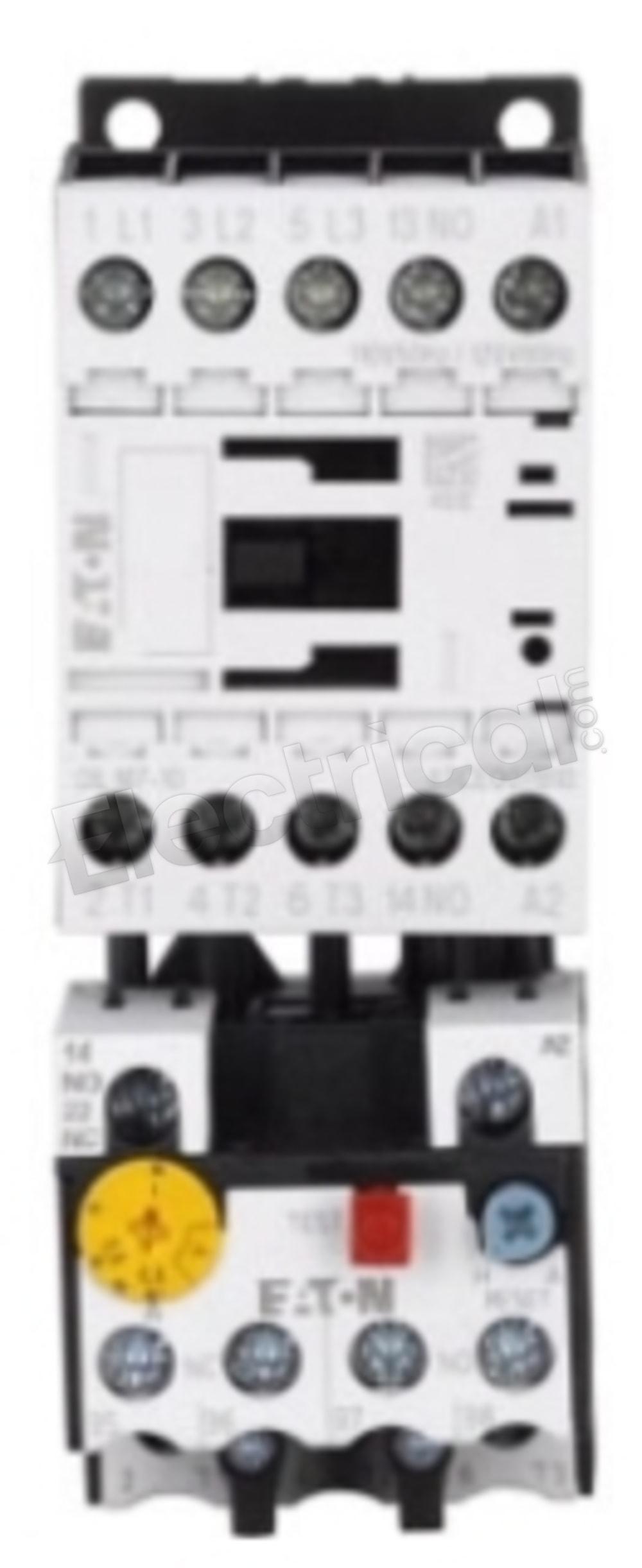

XTAE015B01DP24 Cutler Hammer Motor Starter Motor Control

XTAE015B01DP24

Cutler Hammer - Motor Starter

IMAGES ARE FOR REFERENCE ONLY.

Select Product Condition:

What's the difference?View Specifications

XTAE015B01DP24 Specifications

View Full SpecificationsView Specifications

XTAE015B01DP24, Cutler Hammer, XT Series, type XTAE, IEC & UL rated motor starter, full voltage, non-reversing with bimetallic overload relay, 5HP @ 230V, 10HP @ 460V, 10HP @ 575V, 3P, 3PH, 12A, 600V, complete with 1NC auxiliary contact, XTOBP24BC1 overload relay, 0.16-0.24 FLA, 600V 60Hz AC coil, XT motor power controls

Manufacturer	Cutler Hammer	Subcategory	Motor Starter
Family	XT Series	Amperage	12
Poles	3	Phase	3
Manufacturer	Cutler Hammer
Subcategory	Motor Starter
Family	XT Series
Amperage	12
Poles	3
Phase	3

Electrical.com is NOT an authorized distributor for Square D and therefore the manufacturer’s warranty does not apply. This product does include an Electrical.com 2 year warranty.

XTAE015B01DP24 Specifications:

Part NumberXTAE015B01DP24

Manufacturers

Cutler Hammer

Sub-CategoryMotor Starter

FamilyXT Series

TypeXTAE

Weight1 lbs

Amperage12

Poles3

Phase3

Voltage600
