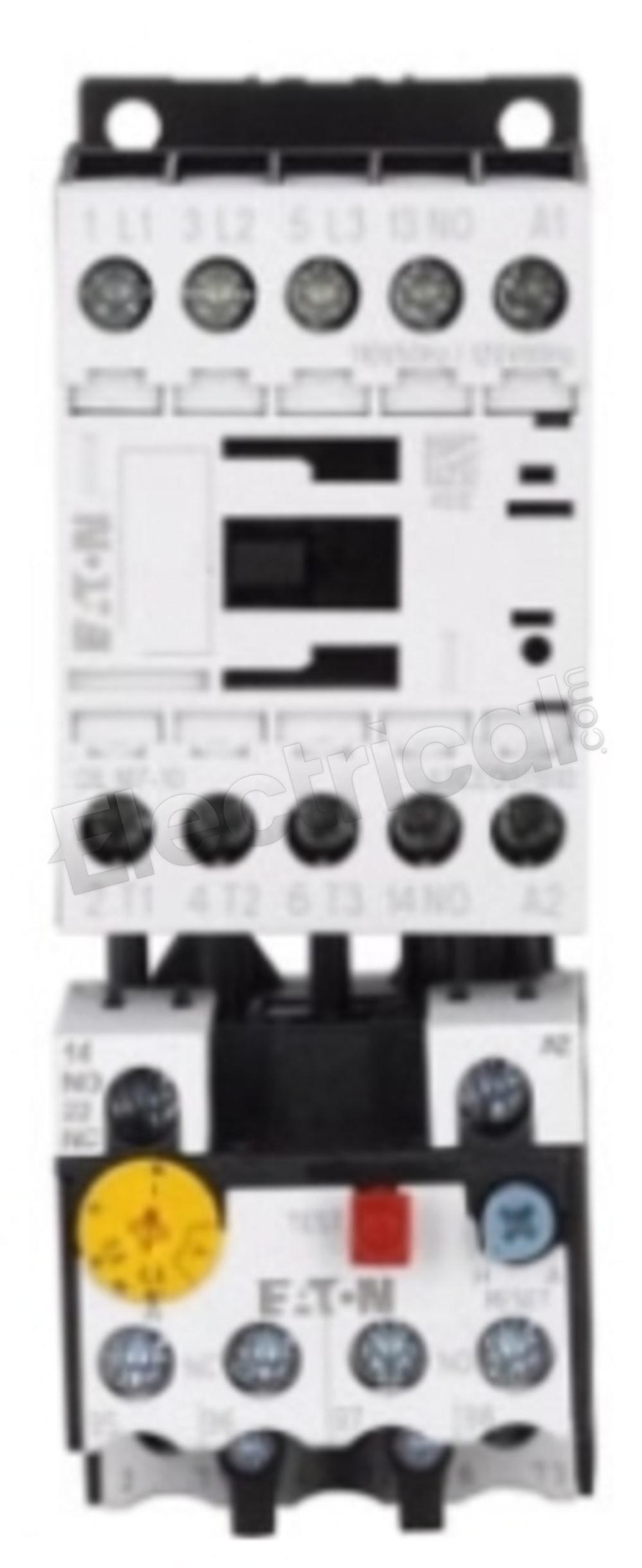

XTAE015B10TP16 Cutler Hammer Motor Starter Motor Control

XTAE015B10TP16

Cutler Hammer - Motor Starter

IMAGES ARE FOR REFERENCE ONLY.

Select Product Condition:

What's the difference?View Specifications

XTAE015B10TP16 Specifications

View Full SpecificationsView Specifications

XTAE015B10TP16, Cutler Hammer, XT Series, type XTAE, IEC & UL rated motor starter, full voltage, non-reversing with bimetallic overload relay, 5HP @ 230V, 10HP @ 460V, 10HP @ 575V, 3P, 3PH, 12A, 600V, complete with 1NO auxiliary contact, XTOBP16BC1 overload relay, 0.1-0.16 FLA, 24V 50/60Hz AC coil, XT motor power controls

Manufacturer	Cutler Hammer	Subcategory	Motor Starter
Family	XT Series	Amperage	12
Poles	3	Phase	3
Manufacturer	Cutler Hammer
Subcategory	Motor Starter
Family	XT Series
Amperage	12
Poles	3
Phase	3

Electrical.com is NOT an authorized distributor for Square D and therefore the manufacturer’s warranty does not apply. This product does include an Electrical.com 2 year warranty.

XTAE015B10TP16 Specifications:

Part NumberXTAE015B10TP16

Manufacturers

Cutler Hammer

Sub-CategoryMotor Starter

FamilyXT Series

TypeXTAE

Weight1 lbs

Amperage12

Poles3

Phase3

Voltage600
