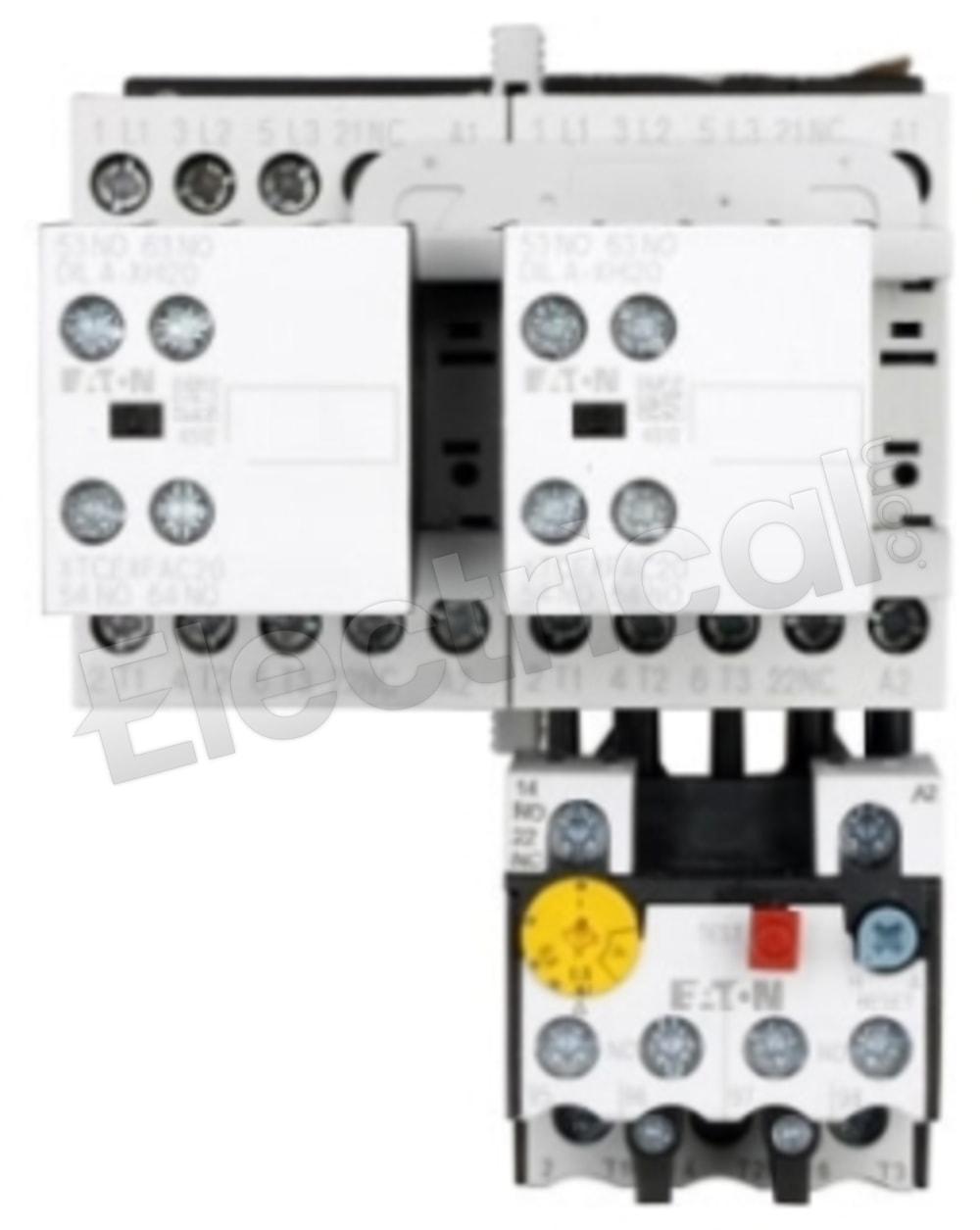

XTAR009B21TDP60 Cutler Hammer Motor Starter Motor Control

XTAR009B21TDP60

Cutler Hammer - Motor Starter

IMAGES ARE FOR REFERENCE ONLY.

Select Product Condition:

What's the difference?View Specifications

XTAR009B21TDP60 Specifications

View Full SpecificationsView Specifications

XTAR009B21TDP60, Cutler Hammer, XT Series, type XTAR, IEC & UL rated revering motor starter, full voltage, with bimetallic overload relay and screw terminals, 3HP @ 230V, 5HP @ 460V, 7.5HP @ 575V, 3P, 3PH, 9A, 600V, XTOBP60BC1 overload relay, 0.4-0.6 FLA, 24V DC coil, XT motor power controls

Manufacturer	Cutler Hammer	Subcategory	Motor Starter
Family	XT Series	Amperage	9
Poles	3	Phase	3
Manufacturer	Cutler Hammer
Subcategory	Motor Starter
Family	XT Series
Amperage	9
Poles	3
Phase	3

Electrical.com is NOT an authorized distributor for Square D and therefore the manufacturer’s warranty does not apply. This product does include an Electrical.com 2 year warranty.

XTAR009B21TDP60 Specifications:

Part NumberXTAR009B21TDP60

Manufacturers

Cutler Hammer

Sub-CategoryMotor Starter

FamilyXT Series

TypeXTAR

Weight1 lbs

Amperage9

Poles3

Phase3

Voltage600
