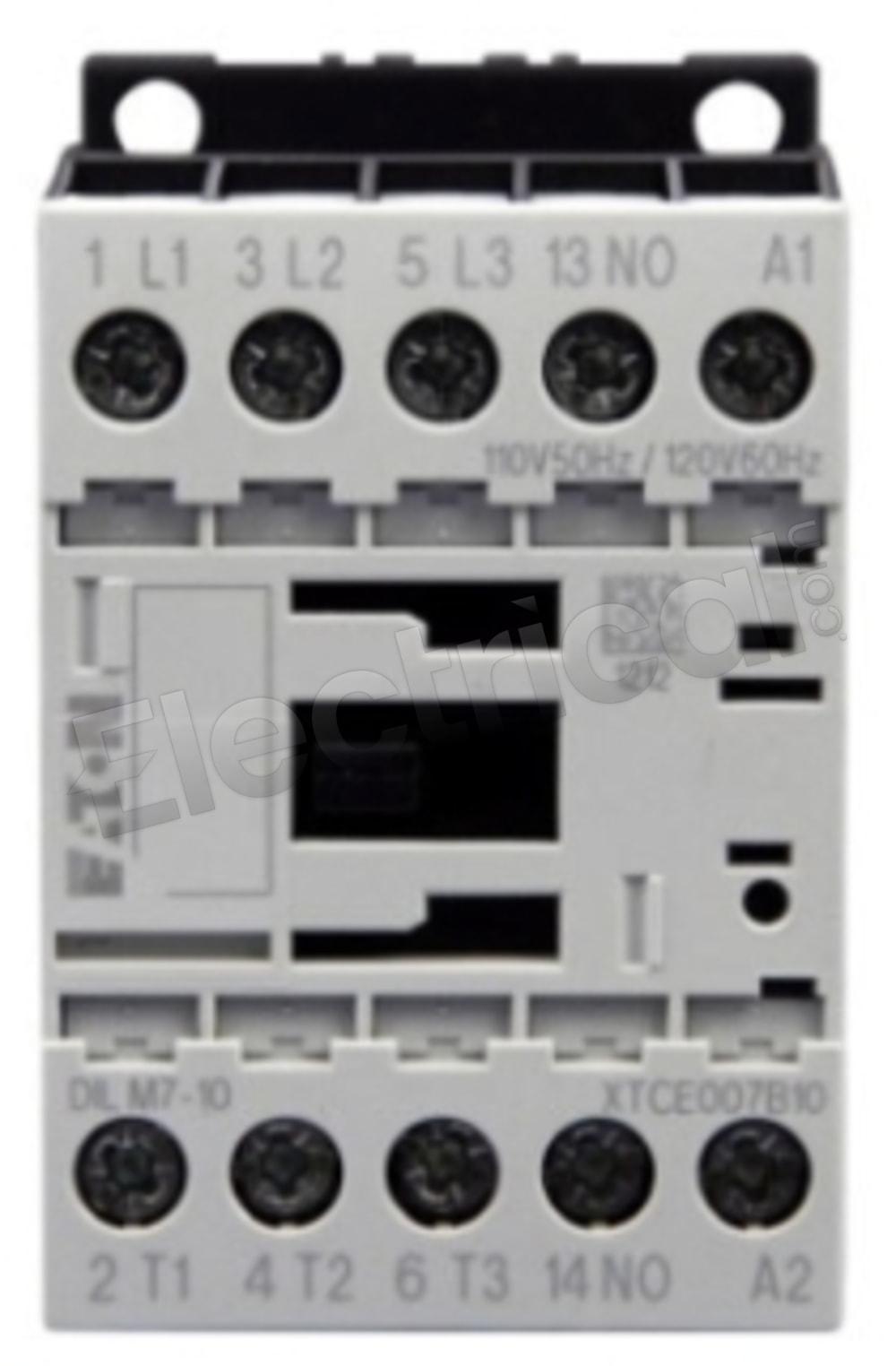

Cutler Hammer Contactor XTCE007B10G

IMAGES ARE FOR REFERENCE ONLY.

Select Product Condition:

View Specifications


XTCE007B10G Specifications

View Specifications

XTCE007B10G, Cutler Hammer, XT Series, type XTCE007B, IEC & UL rated contactor, full voltage, non-reversing, 2HP @ 230V, 3HP @ 460V, 5HP @ 575V, includes 1NO auxiliary contacts, screw terminal, 3P, 3PH, 7A, 600V, complete with 220V 60Hz coil, XT motor power controls

Manufacturer
Cutler Hammer
Subcategory
Contactor
Family
XT Series
Amperage
7
Poles
3
Voltage
600

Electrical.com is NOT an authorized distributor for Square D and therefore the manufacturer’s warranty does not apply. This product does include an Electrical.com 2 year warranty.

Pearl Logo
Standard Warranty Logo
Ships WorldWide Logo
Rush Shipping Logo
XTCE007B10G Specifications:
Part NumberXTCE007B10G
Manufacturers
Sub-CategoryContactor
FamilyXT Series
TypeXTCE007B
Weight1 lbs
Amperage7
Poles3
Voltage600
Phase3
Coil Voltage Min220
Coil Voltage Max220
