AN59SN0A5G300
AN59SN0A5G300
IMAGES ARE FOR REFERENCE ONLY.
IMAGES ARE FOR REFERENCE ONLY.
Select Product Condition:
What's the difference?View Specifications
AN59SN0A5G300 Specifications
View Full SpecificationsView Specifications

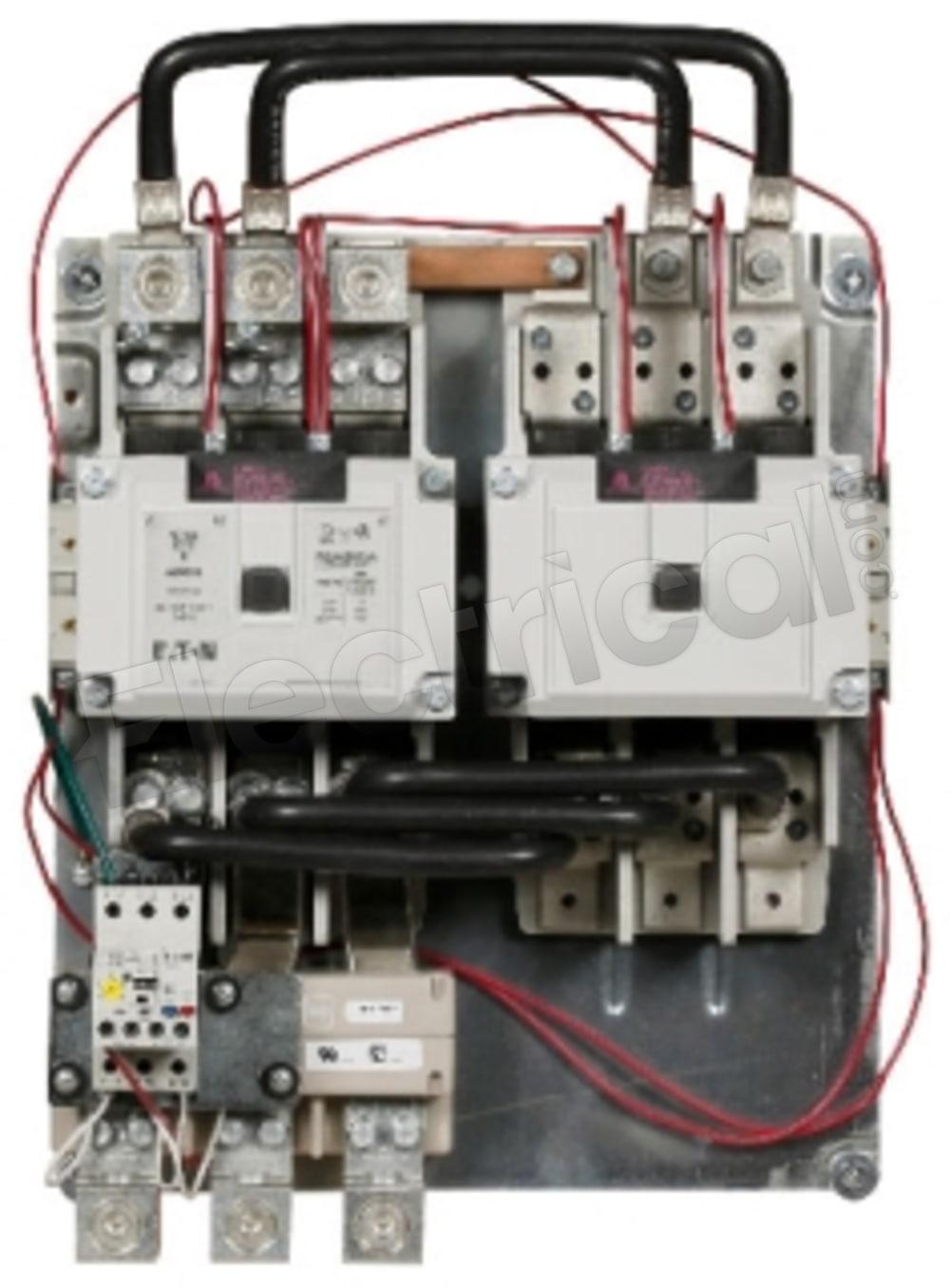

AN59SN0A5G300, Eaton, Cutler Hammer, Freedom Series, reversing motor starter with C440 ground fault electronic overload relay, type AN59, 3P, 3PH, 270A, 600V, 75 HP @ 208V, 100 HP @ 240V, 200 HP @ 480V, 200 HP @ 600V, complete with 120V 60Hz / 110V 50Hz coil, 60-300A FLA range for OLR, NEMA size 5, suitable for use with Freedom Series motor control systems
| Manufacturer | Eaton | Subcategory | Motor Starter |
| Family | Freedom Series | Amperage | 270 |
| Poles | 3 | Phase | 3 |
| Manufacturer | Eaton | ||
| Subcategory | Motor Starter | ||
| Family | Freedom Series | ||
| Amperage | 270 | ||
| Poles | 3 | ||
| Phase | 3 |
Electrical.com is NOT an authorized distributor for Square D and therefore the manufacturer’s warranty does not apply. This product does include an Electrical.com 2 year warranty.
AN59SN0A5G300 Specifications:
Part NumberAN59SN0A5G300
Manufacturers
Sub-CategoryMotor Starter
FamilyFreedom Series
TypeAN59
UPC786685415895
Weight1 lbs
Amperage270
Poles3
Phase3
Voltage600
FunctionsGround fault feature set SEL Reset, SEL Class (10, 20)
Overload RelayC440 electronic overload relay
NEMA Rating5
MountingHorizontal
Coil Voltage120/60 or 110/50
Coil Voltage Min120
EnclosureOpen
Full Load Amperage60-300
Starter TypeReversing
Coil Voltage Max120
NEMA Size5
