CR307C203DAA

General Electric - Motor Starter

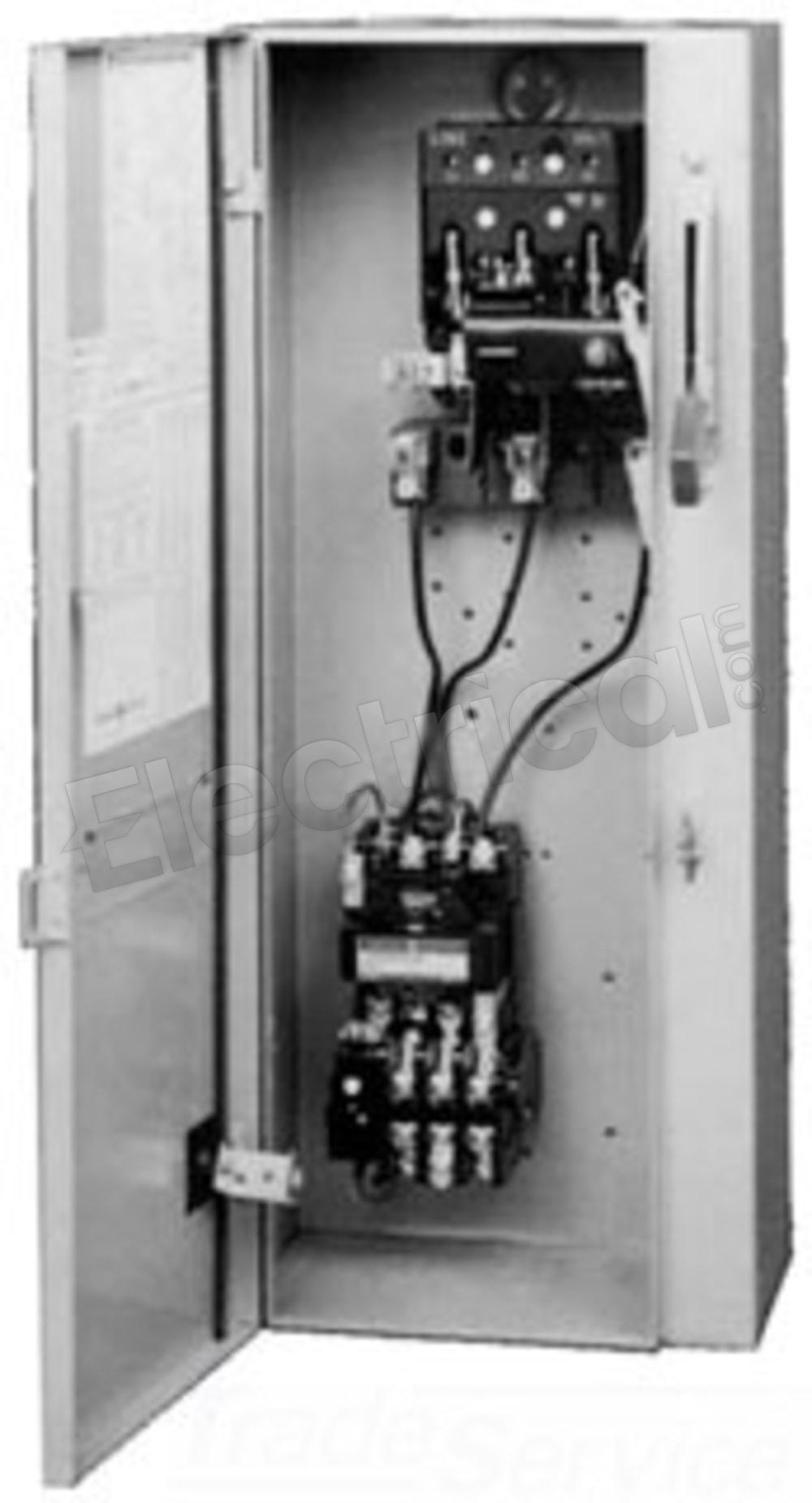

General Electric Motor Starter CR307C203DAA

IMAGES ARE FOR REFERENCE ONLY.

Select Product Condition:

View Specifications

CR307C203DAA Specifications

View Specifications

CR307C203DAA, General Electric, 300 Line, type CR307, 3P, 3PH, 27-35A, 600V, 5 hp, complete with 230V-240V 50/60Hz, AC coil, non-reversing, combination, thermal magnetic circuit breaker type magnetic starter, NEMA size 00 includes NEMA type 12 surface mount enclosure with no external reset, suitable for use with CR307 motor control systems

Manufacturer
General Electric
Subcategory
Motor Starter
Family
300 Line
Amperage
35
Poles
3
Phase
3

Electrical.com is NOT an authorized distributor for Square D and therefore the manufacturer’s warranty does not apply. This product does include an Electrical.com 2 year warranty.

Pearl Logo
Standard Warranty Logo
Ships WorldWide Logo
Rush Shipping Logo
CR307C203DAA Specifications:
Part NumberCR307C203DAA
Manufacturers
General Electric
Sub-CategoryMotor Starter
Family300 Line
TypeCR307
Weight60 lbs
Amperage35
Poles3
Phase3
Voltage600
NEMA Rating00
Coil Voltage Min230
Coil Voltage Max240
