CR307D205YAA General Electric Motor Starter Motor Control

CR307D205YAA

General Electric - Motor Starter

IMAGES ARE FOR REFERENCE ONLY.

Select Product Condition:

What's the difference?View Specifications

CR307D205YAA Specifications

View Full SpecificationsView Specifications

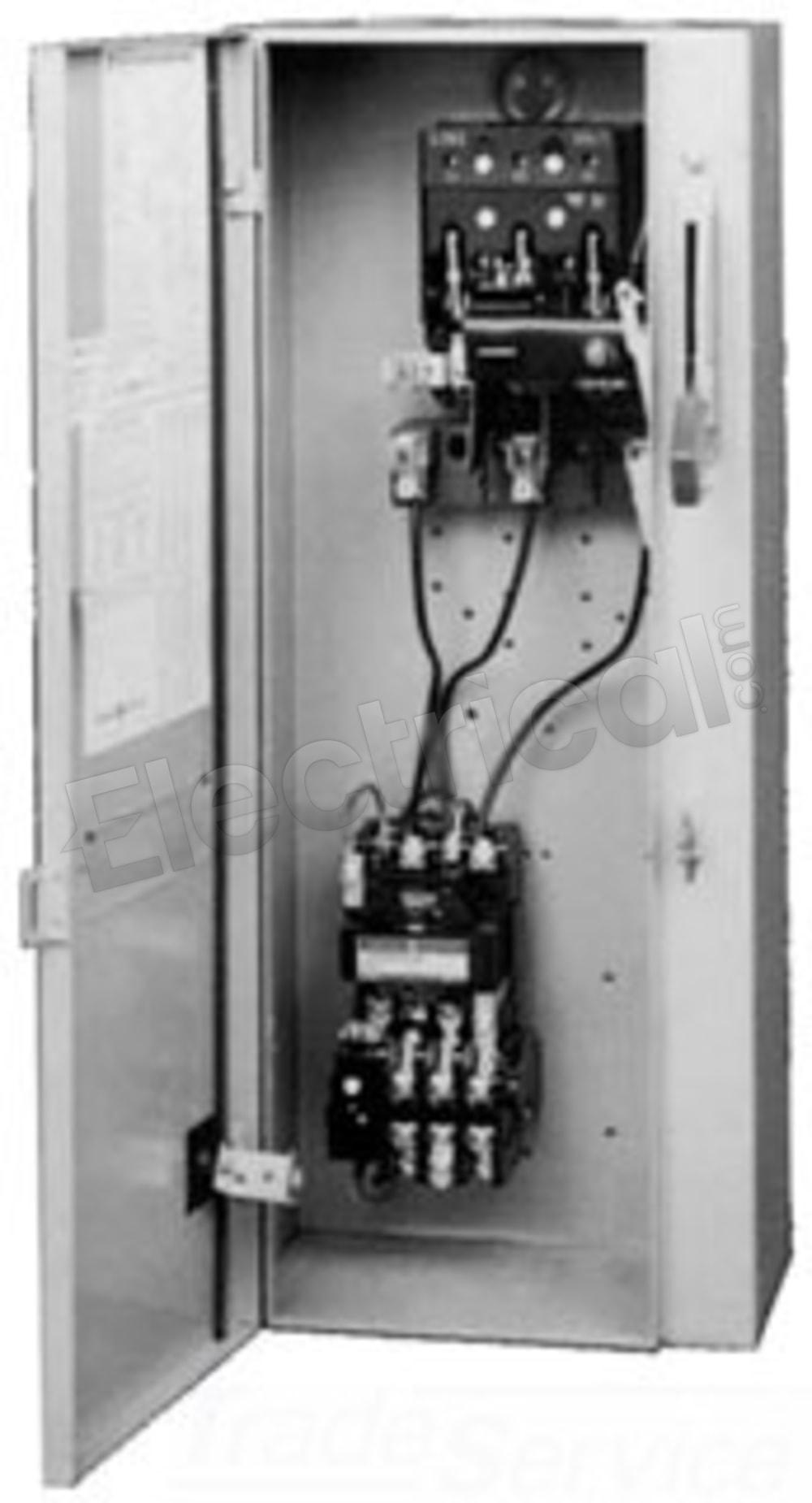

CR307D205YAA, General Electric, 300 Line, type CR307, 3P, 3PH, 40-45A, 600V, 15 hp, complete with 575V-600V 50/60Hz, AC coil, non-reversing, combination, thermal magnetic circuit breaker type magnetic starter, NEMA size 2 includes NEMA type 12 surface mount enclosure with no external reset, suitable for use with CR307 motor control systems

Manufacturer	General Electric	Subcategory	Motor Starter
Family	300 Line	Amperage	45
Poles	3	Phase	3
Manufacturer	General Electric
Subcategory	Motor Starter
Family	300 Line
Amperage	45
Poles	3
Phase	3

Electrical.com is NOT an authorized distributor for Square D and therefore the manufacturer’s warranty does not apply. This product does include an Electrical.com 2 year warranty.

CR307D205YAA Specifications:

Part NumberCR307D205YAA

Manufacturers

General Electric

Sub-CategoryMotor Starter

Family300 Line

TypeCR307

Weight60 lbs

Amperage45

Poles3

Phase3

Voltage600
