CR308G105AAA
CR308G105AAA
IMAGES ARE FOR REFERENCE ONLY.
IMAGES ARE FOR REFERENCE ONLY.
Select Product Condition:
What's the difference?View Specifications
CR308G105AAA Specifications
View Full SpecificationsView Specifications

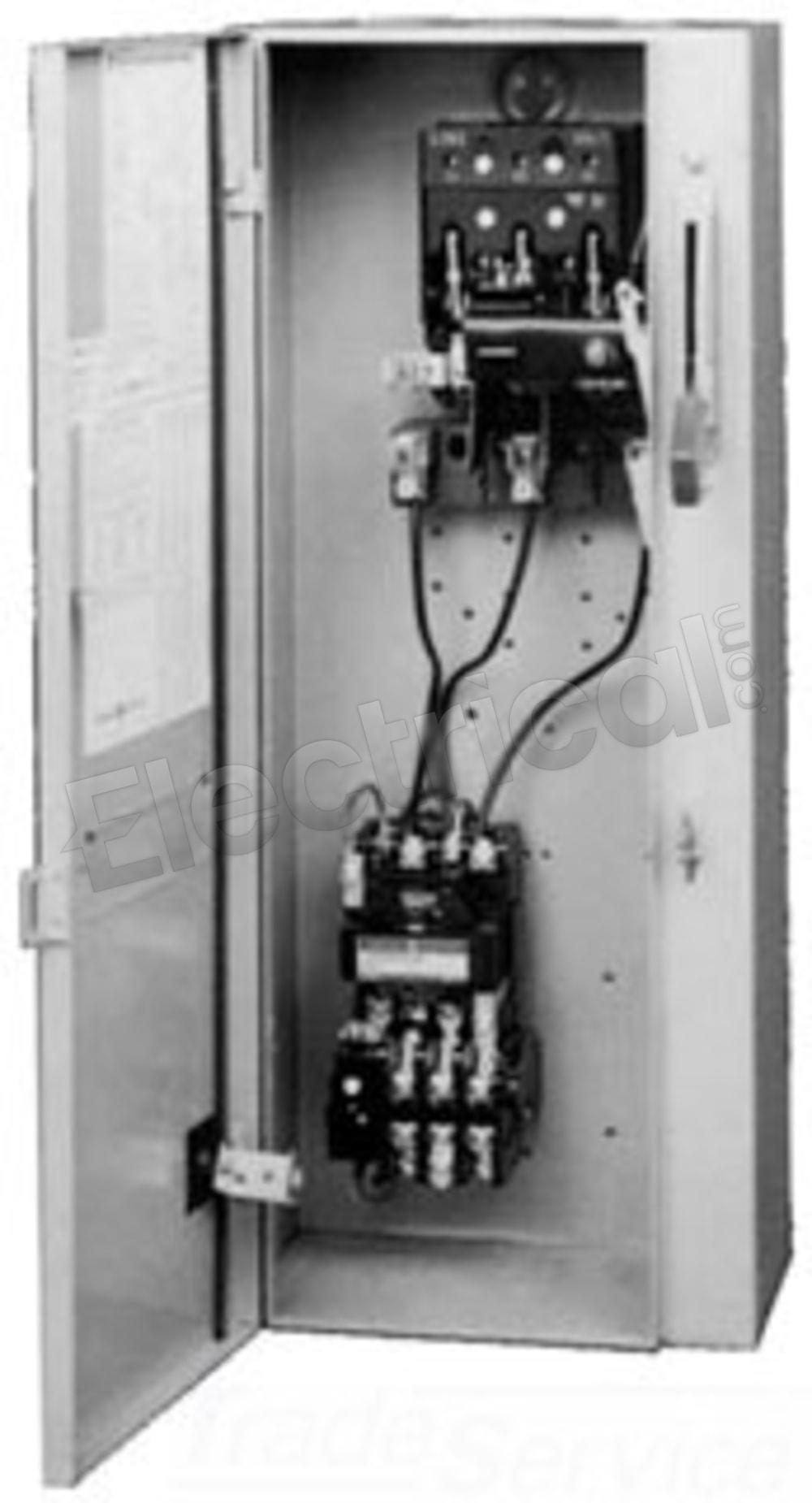

CR308G105AAA, General Electric, Type CR308, Combination non-fusible disconnect type magnetic starter, Non-Reversing, 575-600V@60Hz, NEMA Size 5, 270A, 200HP, NEMA Type 1
| Manufacturer | General Electric | Subcategory | Motor Starter |
| Family | 300 Line | Amperage | 270 |
| Poles | 3 | Phase | 3 |
| Manufacturer | General Electric | ||
| Subcategory | Motor Starter | ||
| Family | 300 Line | ||
| Amperage | 270 | ||
| Poles | 3 | ||
| Phase | 3 |
Electrical.com is NOT an authorized distributor for Square D and therefore the manufacturer’s warranty does not apply. This product does include an Electrical.com 2 year warranty.
CR308G105AAA Specifications:
Part NumberCR308G105AAA
Manufacturers
Sub-CategoryMotor Starter
Family300 Line
TypeCR308
Weight300 lbs
Amperage270
Poles3
Phase3
Voltage600
GroupCombination non-fusible disconnect type magnetic starter
Horsepower200
NEMA Rating1
Coil Voltage Min575
Starter TypeNon-Reversing
Voltage Rating575-600
Coil Voltage Max600
NEMA Size5
