CR308G203AAA

General Electric - Motor Starter

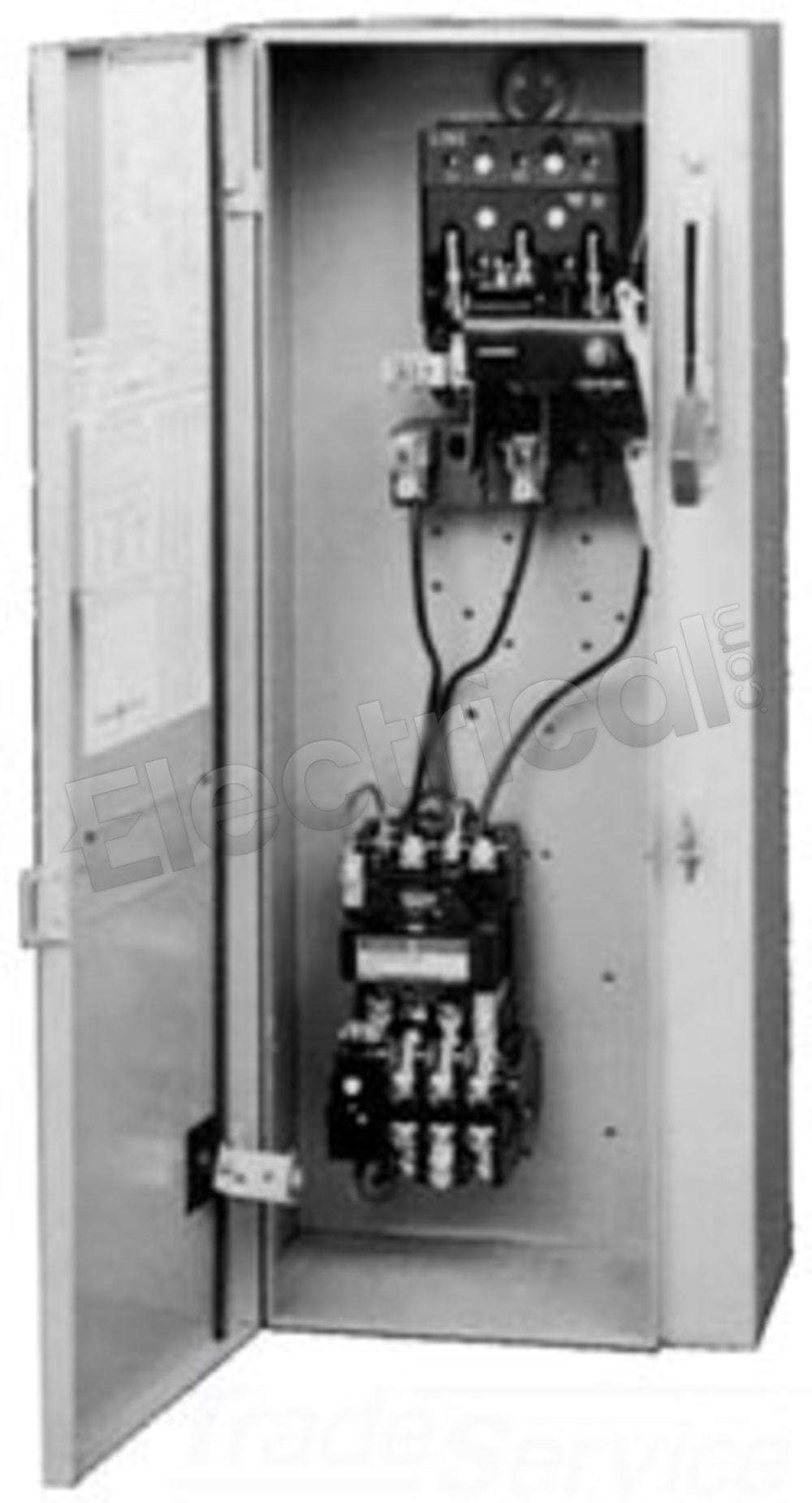

General Electric Motor Starter CR308G203AAA

IMAGES ARE FOR REFERENCE ONLY.

Select Product Condition:

View Specifications

CR308G203AAA Specifications

View Specifications

CR308G203AAA, General Electric, 300 Line, type CR308, 3P, 3PH, 270A, 600V, 100 hp, complete with 230V-240V 50/60Hz, AC coil, non-reversing, combination non-fusible disconnect type magnetic starter, NEMA size 5 includes NEMA type 12 surface mount enclosure with no external reset, suitable for use with CR308 motor control systems

Manufacturer
General Electric
Subcategory
Motor Starter
Family
300 Line
Amperage
270
Poles
3
Phase
3

Electrical.com is NOT an authorized distributor for Square D and therefore the manufacturer’s warranty does not apply. This product does include an Electrical.com 2 year warranty.

Pearl Logo
Standard Warranty Logo
Ships WorldWide Logo
Rush Shipping Logo
CR308G203AAA Specifications:
Part NumberCR308G203AAA
Manufacturers
General Electric
Sub-CategoryMotor Starter
Family300 Line
TypeCR308
Weight300 lbs
Amperage270
Poles3
Phase3
Voltage600
NEMA Rating5
Coil Voltage Min230
Coil Voltage Max240
