CR309E604

General Electric - Motor Starter

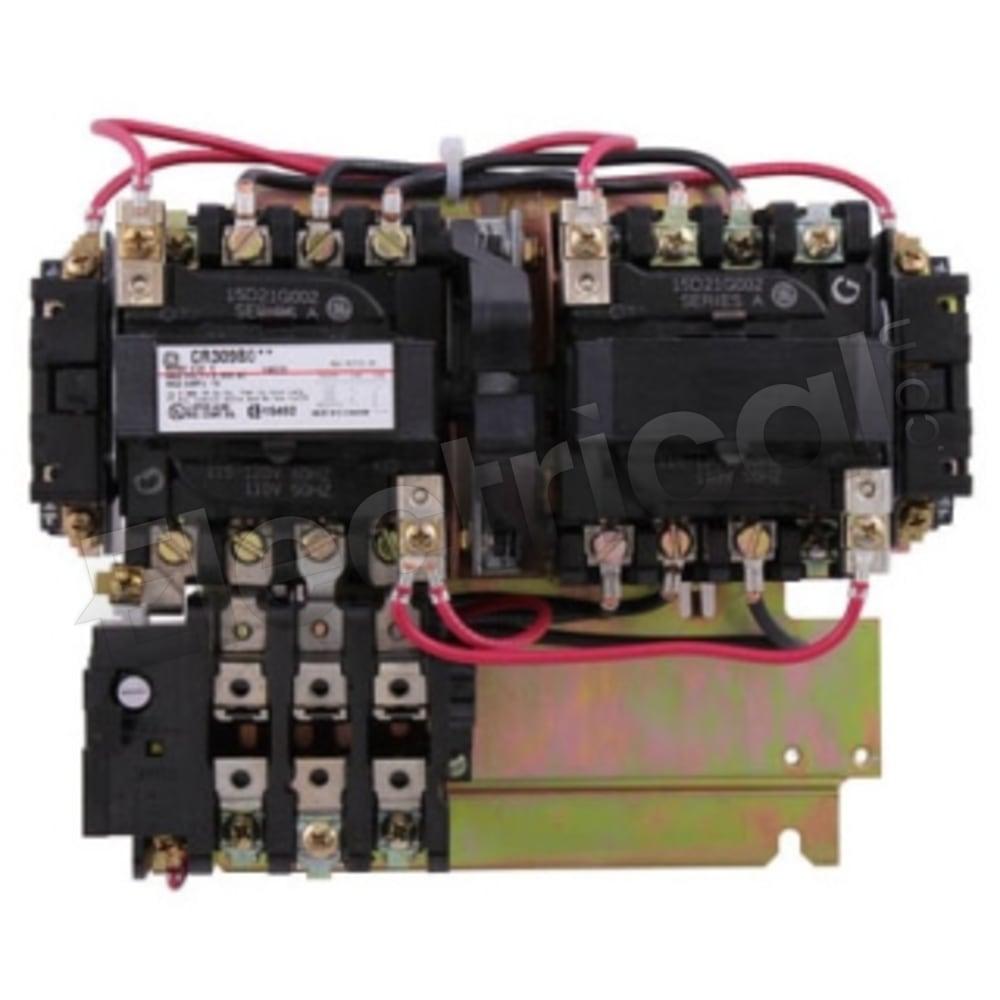

General Electric Motor Starter CR309E604

IMAGES ARE FOR REFERENCE ONLY.

Select Product Condition:

View Specifications

CR309E604 Specifications

View Specifications

CR309E604, General Electric, 300 Line, type CR309, 3P, 3PH, 90A, 600V, 50 hp, complete with 460V-480V 50/60Hz, AC coil, reversing, non-combination magnetic starter, NEMA size 3 with thermal overload relay, includes NEMA type 3R surface mount enclosure, suitable for use with CR309 motor control systems

Manufacturer
General Electric
Subcategory
Motor Starter
Family
300 Line
Amperage
90
Poles
3
Phase
3

Electrical.com is NOT an authorized distributor for Square D and therefore the manufacturer’s warranty does not apply. This product does include an Electrical.com 2 year warranty.

Pearl Logo
Standard Warranty Logo
Ships WorldWide Logo
Rush Shipping Logo
CR309E604 Specifications:
Part NumberCR309E604
Manufacturers
General Electric
Sub-CategoryMotor Starter
Family300 Line
TypeCR309
Weight115 lbs
Amperage90
Poles3
Phase3
Voltage600
NEMA Rating3
Coil Voltage Min460
Coil Voltage Max480
