17DUE92NE
17DUE92NE
IMAGES ARE FOR REFERENCE ONLY.
IMAGES ARE FOR REFERENCE ONLY.
Select Product Condition:
What's the difference?View Specifications
17DUE92NE Specifications
View Full SpecificationsView Specifications

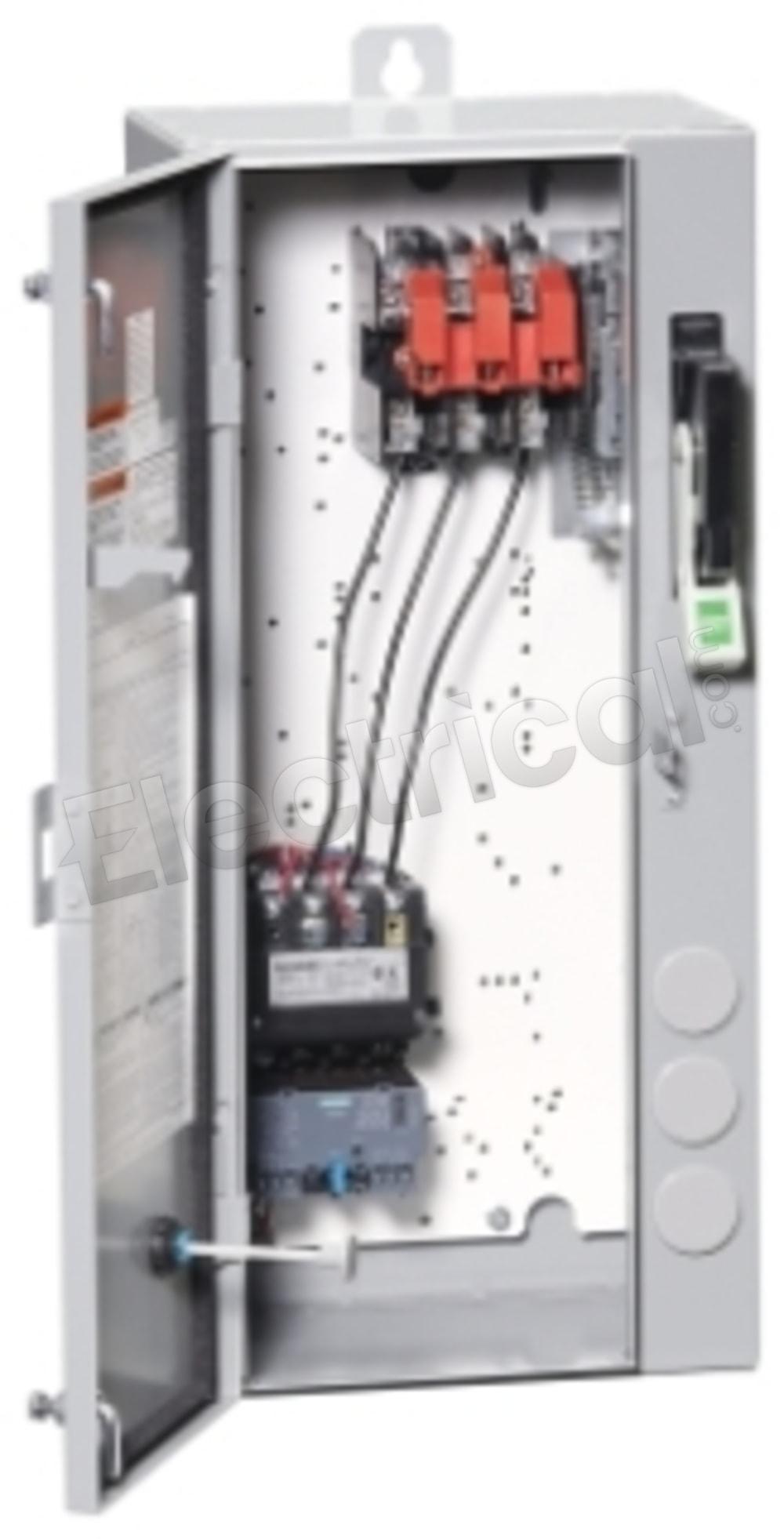

17DUE92NE, Siemens, Class 17, combination heavy duty motor starter, NEMA size 1, 3P, 3PH, 60A, 600V, 7 1/2HP @ 200V, 7 1/2HP @ 230V, with 10-40A solid state overload, complete with 575-600V AC 60Hz coil, enclosed in NEMA 12/3/3R enclosure
| Manufacturer | Siemens | Subcategory | Motor Starter |
| Family | Class 17 | Amperage | 60 |
| Poles | 3 | Phase | 3 |
| Manufacturer | Siemens | ||
| Subcategory | Motor Starter | ||
| Family | Class 17 | ||
| Amperage | 60 | ||
| Poles | 3 | ||
| Phase | 3 |
Electrical.com is NOT an authorized distributor for Square D and therefore the manufacturer’s warranty does not apply. This product does include an Electrical.com 2 year warranty.
17DUE92NE Specifications:
Part Number17DUE92NE
Manufacturers
Sub-CategoryMotor Starter
FamilyClass 17
Type17DU
UPC662643807707
Weight34 lbs
Amperage60
Poles3
Phase3
Voltage600
NEMA Rating1
Coil Voltage Min575
Coil Voltage Max600
