17HP82BC1581

Siemens - Motor Starter

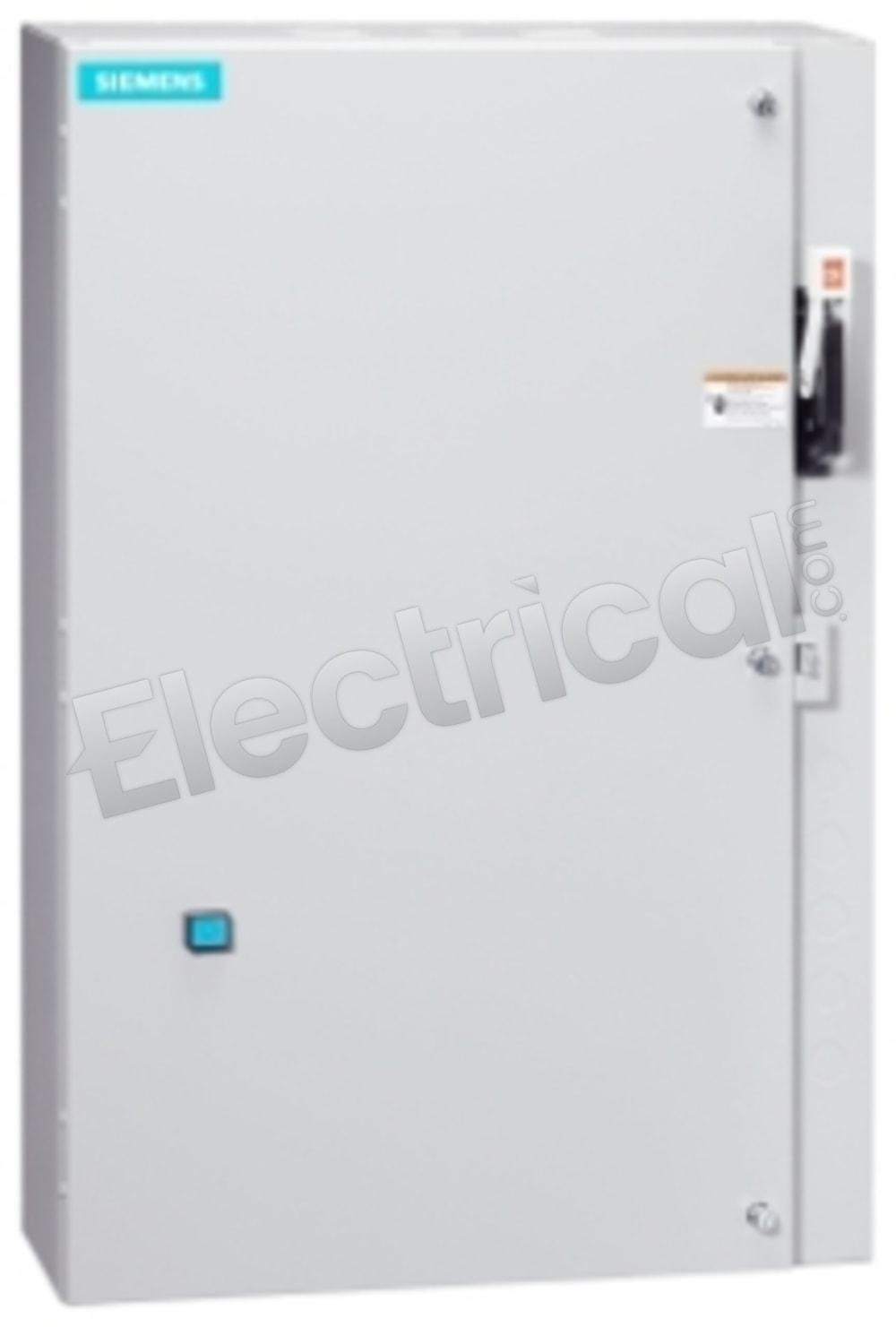

Siemens Motor Starter 17HP82BC1581

IMAGES ARE FOR REFERENCE ONLY.

Select Product Condition:

View Specifications

17HP82BC1581 Specifications

View Specifications

17HP82BC1581, Siemens, Class 17, fusible combination heavy duty motor starter with ambient compensated bimetal overload, type 17HP, 3P, 3PH, 115A, 600V, 50 HP @ 460V, 50 HP @ 575V, complete with 220-240/440-480V 60Hz coil and 100A/600V fuse clip, NEMA size 3.5, enclosed in NEMA extra wide enclosure

Manufacturer
Siemens
Subcategory
Motor Starter
Family
Class 17
Amperage
115
Poles
3
Phase
3

Electrical.com is NOT an authorized distributor for Square D and therefore the manufacturer’s warranty does not apply. This product does include an Electrical.com 2 year warranty.

Pearl Logo
Standard Warranty Logo
Ships WorldWide Logo
Rush Shipping Logo
17HP82BC1581 Specifications:
Part Number17HP82BC1581
Manufacturers
Siemens
Sub-CategoryMotor Starter
FamilyClass 17
Type17HP
UPC783087318915
Weight110 lbs
Amperage115
Poles3
Phase3
Voltage600
NEMA Rating3.5
Coil Voltage Min440
Coil Voltage Max480
