- Motor Control /
- Contactor /
- Siemens /
3RT1023-1AM20
IMAGES ARE FOR REFERENCE ONLY.
IMAGES ARE FOR REFERENCE ONLY.
Select Product Condition:
What's the difference?View Specifications
3RT1023-1AM20 Specifications
View Full SpecificationsView Specifications

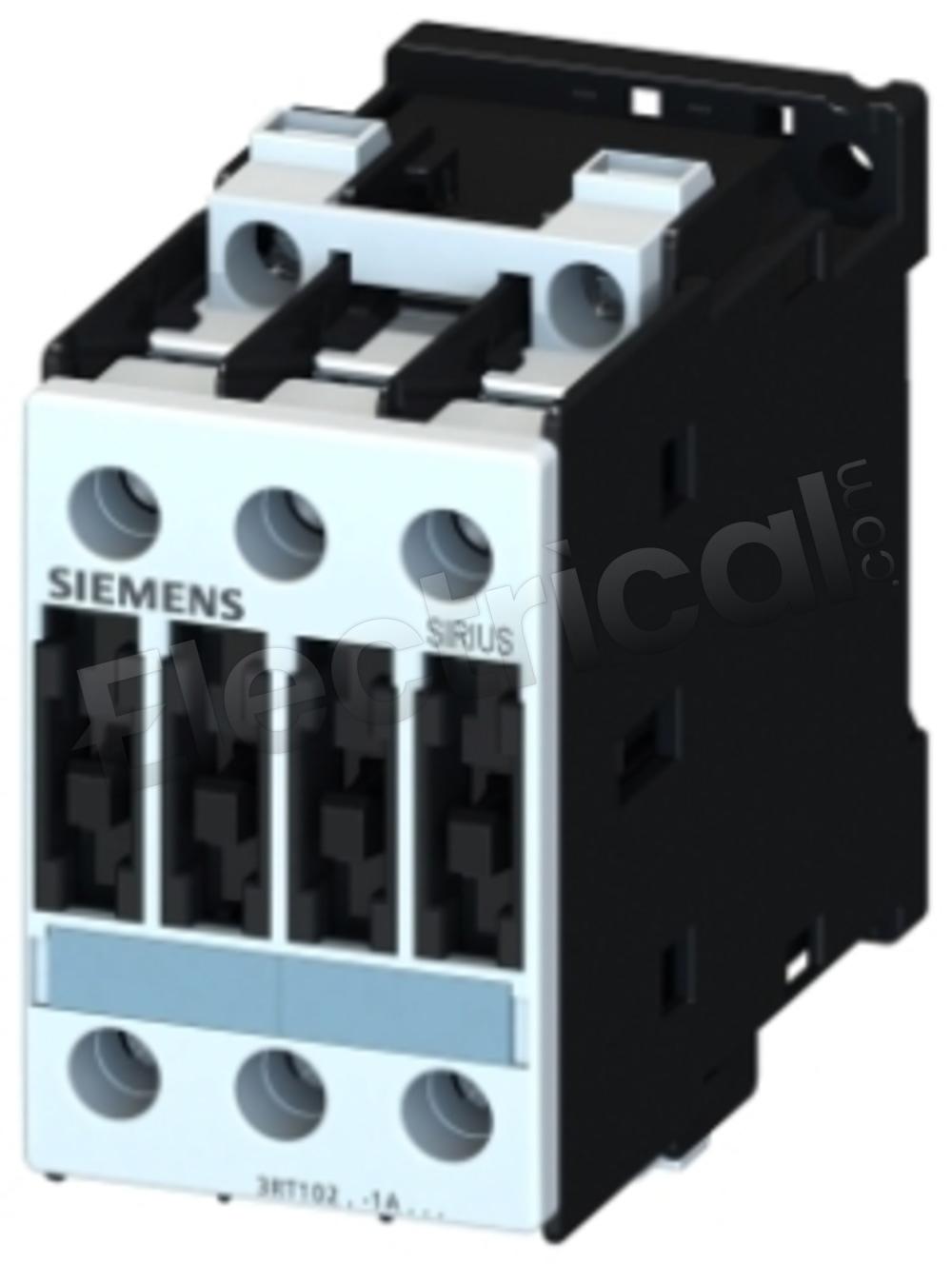

3RT1023-1AM20, Siemens, Sirius 3RT line, type 3RT10, 3P, 3PH, 9A, 600V, 3HP @ 230V, 5HP @ 460V, 7.5HP @ 575V, complete with 208V AC 50/60Hz coil, AC magnetic contactor, suitable for use with 3RT series motor control systems
| Manufacturer | Siemens | Subcategory | Contactor |
| Family | Sirius 3RT | Amperage | 9 |
| Poles | 3 | Voltage | 600 |
| Manufacturer | Siemens | ||
| Subcategory | Contactor | ||
| Family | Sirius 3RT | ||
| Amperage | 9 | ||
| Poles | 3 | ||
| Voltage | 600 |
Electrical.com is NOT an authorized distributor for Square D and therefore the manufacturer’s warranty does not apply. This product does include an Electrical.com 2 year warranty.
3RT1023-1AM20 Specifications:
Part Number3RT1023-1AM20
Manufacturers
Sub-CategoryContactor
FamilySirius 3RT
Type3RT10
Amperage9
Poles3
Voltage600
Phase3
Coil Voltage Max208
