ACP6034BC

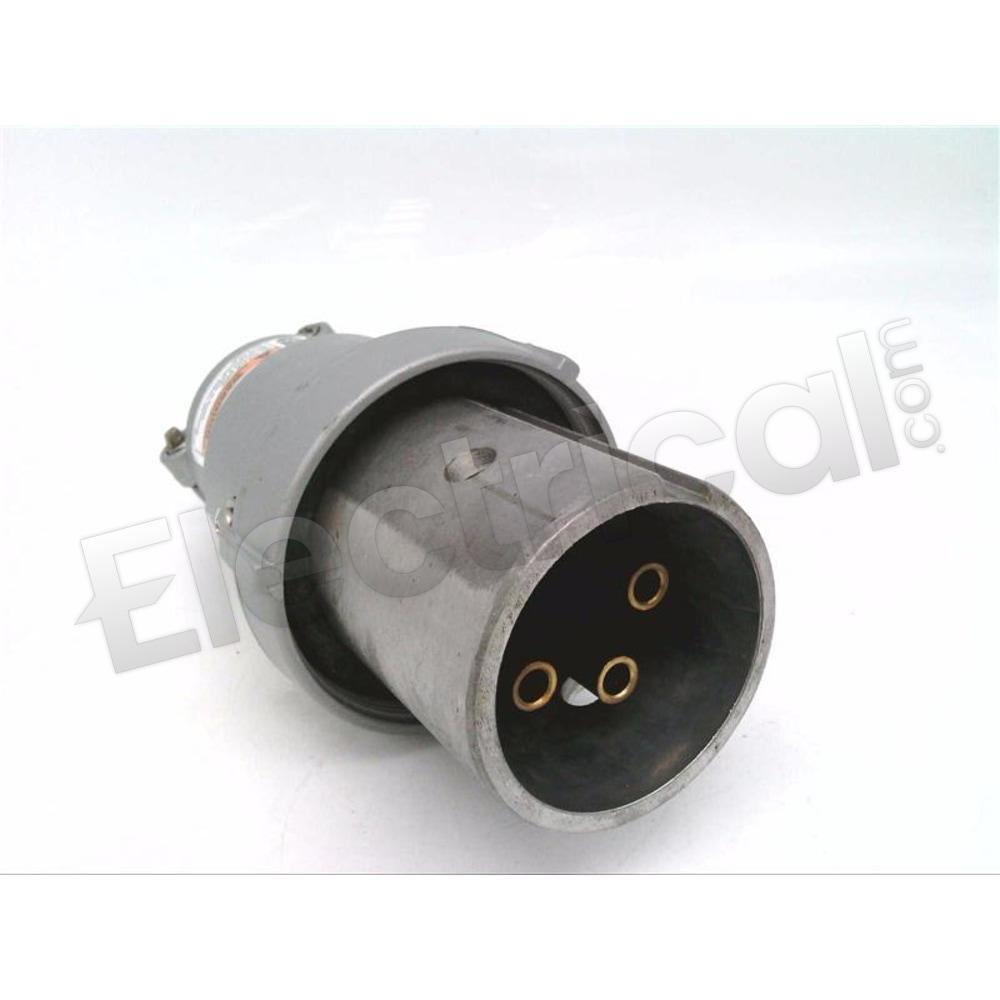

Appleton Switch Part And Accessory ACP6034BC

IMAGES ARE FOR REFERENCE ONLY.

Select Product Condition:

View Specifications


ACP6034BC Specifications

View Specifications

ACP6034BC, Appleton, Powertite Series pin and sleeve Plugs, 60A, 600V, 250Vdc; 3W, 4P, metallic clamping ring, 0.5-1.25 diameter

Manufacturer
Appleton
Subcategory
Switch Part And Accessory
Family
Powertite Series

Electrical.com is NOT an authorized distributor for Appleton and therefore the manufacturer’s warranty does not apply. This product does include an Electrical.com 2 year warranty.

Pearl Logo
Standard Warranty Logo
Ships WorldWide Logo
Rush Shipping Logo
ACP6034BC Specifications:
Part NumberACP6034BC
Manufacturers
TypeACP
UPC781381440226
Weight2.25 lbs
GroupPlugs

The Appleton ACP6034BC is part of the Powertite series, a heavy-duty line of pin-and-sleeve plugs engineered for use in industrial and hazardous location environments. This plug is a 4-pole configuration and supports voltage applications up to 600V AC and 250V DC. It features a clamping ring with a neoprene bushing that provides a secure, watertight seal, ensuring safe operation in moisture-prone or rugged areas.


Built with a copper-free aluminum housing and epoxy powder-coated finish, the ACP6034BC offers strong corrosion resistance and mechanical durability. Internally, pressure-type wire terminals support a broad range of cable sizes, while solid brass contacts and beryllium copper springs ensure consistent conductivity and reduced arcing. Powertite plugs are widely used in equipment such as motor generators, welders, and pumps where a secure high-current connection is critical.


You can find the ACP6034BC at Electrical.com, your reliable partner for Appleton plugs, receptacles, and industrial power connection accessories.
